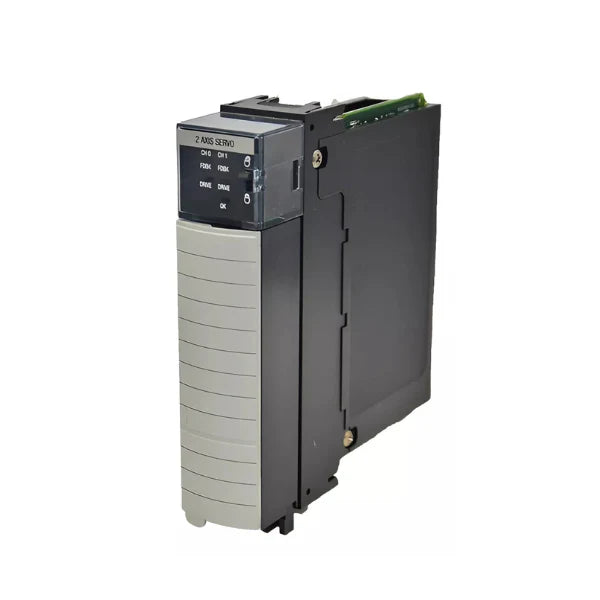

Allen-Bradley 1756-M02AE

SKU: 1756-M02AE
Your Price:
$510.00
Add to wishlist
Checkout Secure
Order in the next to get it by

10+ Available in Stock

  • Image of Free Shipping on All Orders

    Free Shipping on All Orders
  • Image of 1 Year Warranty

    We will beat any price

    1 Year Warranty
  • Image of Experts Aavaiable 7/24/365

    Free shipping

    Experts Aavaiable 7/24/365
  • Image of 30 days money-back

    30 days money-back

Allen-Bradley 1756-M02AE | 2-Axis Analog Motion Control Module | ±10V | Encoder Feedback | For ControlLogix Systems

Overview

The Allen-Bradley 1756-M02AE is a 2-axis analog motion control module for ControlLogix systems, providing ±10V command output signals to analog servo drives. It supports high-precision position, velocity, and torque control applications with encoder feedback and integrates seamlessly with Studio 5000 for motion configuration and diagnostics.

Key Features

  • Number of Axes: 2

  • Output Signal: ±10V analog (velocity or torque mode)

  • Feedback Supported: Encoder (incremental quadrature)

  • Loop Closure: Performed by drive (open-loop control from module)

  • Update Rate: 1 ms typical per axis

  • Backplane Communication: High-speed ControlLogix backplane

  • Diagnostics: Onboard motion status and fault monitoring

  • Programming: Configurable via Studio 5000 / RSLogix 5000

Technical Specifications

  • Catalog Number: 1756-M02AE

  • Resolution: 16-bit DAC output

  • Input Voltage Range: TTL-level encoder inputs

  • Isolation: Optical isolation between channels and backplane

  • Operating Temp: 0°C to 60°C

  • Chassis Compatibility: ControlLogix 1756 series

  • Certifications: UL, CE, CSA

  • Dimensions (HxWxD): Approx. 142 x 35 x 118 mm

Applications

  • Analog servo drive control

  • CNC and packaging equipment

  • Custom automation with legacy drives

  • Industrial robotics

  • High-speed machine tools

Why Choose the 1756-M02AE?

  • Seamless integration with ControlLogix architecture

  • Supports legacy analog servo systems

  • High-precision motion control with feedback support

  • Real-time diagnostics and Studio 5000 compatibility

  • Compact 2-axis control from a single slot

Order Now

The Allen-Bradley 1756-M02AE is available and ships worldwide.

New & Genuine Products – Factory Sealed At PLCpartssolution, all our products are 100% new, genuine, and come in original factory-sealed packaging. We guarantee authentic components that meet the highest industry standards for performance and reliability.
1-Year Warranty Included All new products sold by PLCpartssolution come with a 1-year warranty. We stand behind the quality and reliability of our parts, ensuring coverage against manufacturing defects under normal operating conditions.
Disclaimer: PLCpartssolution is an independent supplier of surplus and refurbished industrial automation products. We are not an authorized distributor, reseller, or representative of the brands listed on this website. All trademarks, brand names, and logos are the property of their respective owners. PLCpartssolution is not affiliated with, endorsed by, or approved by ABB, Fanuc, B&R, Rockwell Automation, Schneider Electric, Siemens, or any other manufacturers mentioned.
