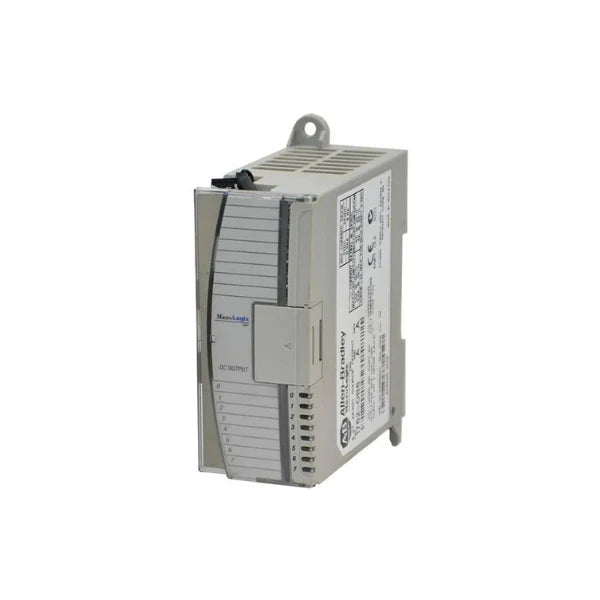

Allen-Bradley 1762-OB8 digital output module, 8-point, 24V DC sourcing, for MicroLogix controllers.

Allen-Bradley 1762-OB8

SKU: 1762-OB8
Your Price:
$226.00
Add to wishlist
Checkout Secure
Order in the next to get it by

10+ Available in Stock

  • Image of Free Shipping on All Orders

    Free Shipping on All Orders
  • Image of 1 Year Warranty

    We will beat any price

    1 Year Warranty
  • Image of Experts Aavaiable 7/24/365

    Free shipping

    Experts Aavaiable 7/24/365
  • Image of 30 days money-back

    30 days money-back

Allen-Bradley 1762-OB8 | 8-Point Sourcing Output Module | 24V DC | MicroLogix 1200/1400 Compatible

Overview

The Allen-Bradley 1762-OB8 is an 8-point 24V DC digital output module designed for use with MicroLogix 1200 and 1400 controllers. It provides sourcing (positive logic) outputs in a compact, space-saving form factor. With reliable operation, simple installation, and solid-state output circuitry, the 1762-OB8 is ideal for a wide range of industrial automation applications.

Key Features

  • Number of Outputs: 8 digital outputs

  • Output Type: Sourcing (solid-state)

  • Voltage Range: 20.4 to 26.4V DC

  • Maximum Output Current: 0.5 A per channel, 4 A total per module

  • Point Isolation: 1500V AC (rms) for 1 minute

  • Mounting Type: DIN rail or panel mount

  • Removable Terminal Block: Simplifies wiring and maintenance

  • Status Indicators: LED for each output point

Technical Specifications

  • Catalog Number: 1762-OB8

  • Operating Voltage: 24V DC nominal

  • Current per Output: 0.5 A max

  • Backplane Current (5V): 120 mA

  • Power Dissipation: 1.8 W max

  • Operating Temperature: 0°C to 55°C

  • Dimensions (HxWxD): 90 x 40.4 x 87 mm

  • Certifications: UL, CE, c-UL, Class I Div 2, RoHS

Applications

  • Discrete machine control

  • Material handling systems

  • Packaging equipment

  • Pump and motor control

  • Conveyor systems

Why Choose the 1762-OB8?

  • Reliable sourcing outputs for digital control

  • Compact module saves panel space

  • Designed for seamless integration with MicroLogix systems

  • Removable terminal block for easy wiring

  • Industrial-grade durability and certifications

Order Now

The Allen-Bradley 1762-OB8 digital output module is in stock and ready to ship worldwide.

New & Genuine Products – Factory Sealed At PLCpartssolution, all our products are 100% new, genuine, and come in original factory-sealed packaging. We guarantee authentic components that meet the highest industry standards for performance and reliability.
1-Year Warranty Included All new products sold by PLCpartssolution come with a 1-year warranty. We stand behind the quality and reliability of our parts, ensuring coverage against manufacturing defects under normal operating conditions.
Disclaimer: PLCpartssolution is an independent supplier of surplus and refurbished industrial automation products. We are not an authorized distributor, reseller, or representative of the brands listed on this website. All trademarks, brand names, and logos are the property of their respective owners. PLCpartssolution is not affiliated with, endorsed by, or approved by ABB, Fanuc, B&R, Rockwell Automation, Schneider Electric, Siemens, or any other manufacturers mentioned.
