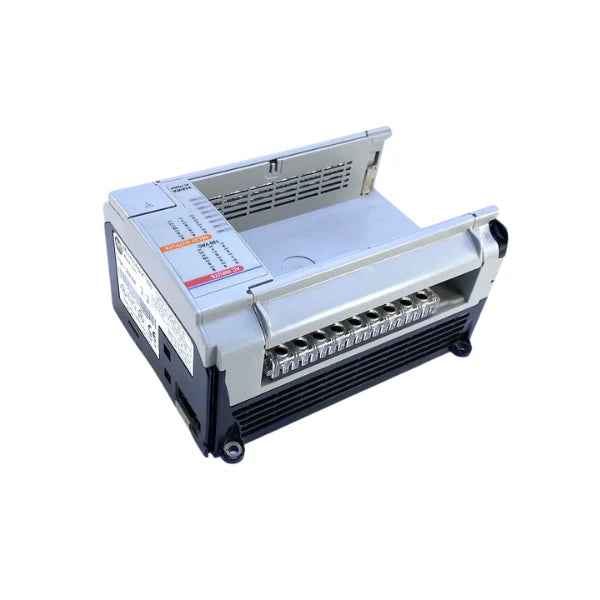

Allen-Bradley 1764-24AWA

SKU: 1764-24AWA
Your Price:
$786.00
Add to wishlist
Checkout Secure
Order in the next to get it by

10+ Available in Stock

  • Image of Free Shipping on All Orders

    Free Shipping on All Orders
  • Image of 1 Year Warranty

    We will beat any price

    1 Year Warranty
  • Image of Experts Aavaiable 7/24/365

    Free shipping

    Experts Aavaiable 7/24/365
  • Image of 30 days money-back

    30 days money-back

Allen-Bradley 1764-24AWA | MicroLogix 1500 Base Unit | 14 Digital Inputs | 10 Relay Outputs | 120V AC Power | Modular PLC | DIN/Panel Mount

Overview

The Allen-Bradley 1764-24AWA is a MicroLogix 1500 base unit with 24 built-in I/O points, including 14 digital inputs and 10 relay outputs. Powered by 120V AC, it serves as a compact, modular platform for small to mid-size control applications. Designed for flexible expansion, it supports communication, I/O, and memory modules, and mounts easily on a DIN rail or panel.

Key Features

  • Power Supply: 120V AC input

  • Digital Inputs: 14 (120V AC)

  • Digital Outputs: 10 (relay type)

  • Output Rating: 2A max per relay contact

  • I/O Type: Fixed onboard I/O

  • Modular Design: Supports expansion with 1764 modules

  • Mounting: DIN rail or panel

  • Status Indicators: LED for inputs/outputs

  • Compatibility: Used with 1764-LRP or LSP processor modules

Technical Specifications

  • Catalog Number: 1764-24AWA

  • Input Type: AC (sinking or sourcing)

  • Output Type: Relay (mechanical contacts)

  • Operating Voltage: 79–132V AC

  • Frequency: 47–63 Hz

  • Operating Temperature: 0°C to +55°C

  • Certifications: UL, CE, CSA, Class I Div 2

  • Memory: Dependent on installed processor (sold separately)

Applications

  • Building and utility control systems

  • Standalone machine control

  • Pump, fan, and compressor automation

  • Material handling and small conveyors

  • OEM panels with modular expansion needs

Why Choose the 1764-24AWA?

  • Flexible and expandable MicroLogix 1500 platform

  • 24 onboard I/O points for small system integration

  • Compatible with a wide range of communication and I/O modules

  • Relay outputs allow direct switching of AC or DC loads

  • Reliable for both industrial and commercial applications

Order Now

The Allen-Bradley 1764-24AWA MicroLogix 1500 base unit is in stock and ships worldwide.

New & Genuine Products – Factory Sealed At PLCpartssolution, all our products are 100% new, genuine, and come in original factory-sealed packaging. We guarantee authentic components that meet the highest industry standards for performance and reliability.
1-Year Warranty Included All new products sold by PLCpartssolution come with a 1-year warranty. We stand behind the quality and reliability of our parts, ensuring coverage against manufacturing defects under normal operating conditions.
Disclaimer: PLCpartssolution is an independent supplier of surplus and refurbished industrial automation products. We are not an authorized distributor, reseller, or representative of the brands listed on this website. All trademarks, brand names, and logos are the property of their respective owners. PLCpartssolution is not affiliated with, endorsed by, or approved by ABB, Fanuc, B&R, Rockwell Automation, Schneider Electric, Siemens, or any other manufacturers mentioned.

Description

Allen-Bradley 1764-24AWA | MicroLogix 1500 Base Unit | 14 Digital Inputs | 10 Relay Outputs | 120V AC Power | Modular PLC | DIN/Panel Mount

Overview

The Allen-Bradley 1764-24AWA is a MicroLogix 1500 base unit with 24 built-in I/O points, including 14 digital inputs and 10 relay outputs. Powered by 120V AC, it serves as a compact, modular platform for small to mid-size control applications. Designed for flexible expansion, it supports communication, I/O, and memory modules, and mounts easily on a DIN rail or panel.

Key Features

  • Power Supply: 120V AC input

  • Digital Inputs: 14 (120V AC)

  • Digital Outputs: 10 (relay type)

  • Output Rating: 2A max per relay contact

  • I/O Type: Fixed onboard I/O

  • Modular Design: Supports expansion with 1764 modules

  • Mounting: DIN rail or panel

  • Status Indicators: LED for inputs/outputs

  • Compatibility: Used with 1764-LRP or LSP processor modules

Technical Specifications

  • Catalog Number: 1764-24AWA

  • Input Type: AC (sinking or sourcing)

  • Output Type: Relay (mechanical contacts)

  • Operating Voltage: 79–132V AC

  • Frequency: 47–63 Hz

  • Operating Temperature: 0°C to +55°C

  • Certifications: UL, CE, CSA, Class I Div 2

  • Memory: Dependent on installed processor (sold separately)

Applications

  • Building and utility control systems

  • Standalone machine control

  • Pump, fan, and compressor automation

  • Material handling and small conveyors

  • OEM panels with modular expansion needs

Why Choose the 1764-24AWA?

  • Flexible and expandable MicroLogix 1500 platform

  • 24 onboard I/O points for small system integration

  • Compatible with a wide range of communication and I/O modules

  • Relay outputs allow direct switching of AC or DC loads

  • Reliable for both industrial and commercial applications

Order Now

The Allen-Bradley 1764-24AWA MicroLogix 1500 base unit is in stock and ships worldwide.
