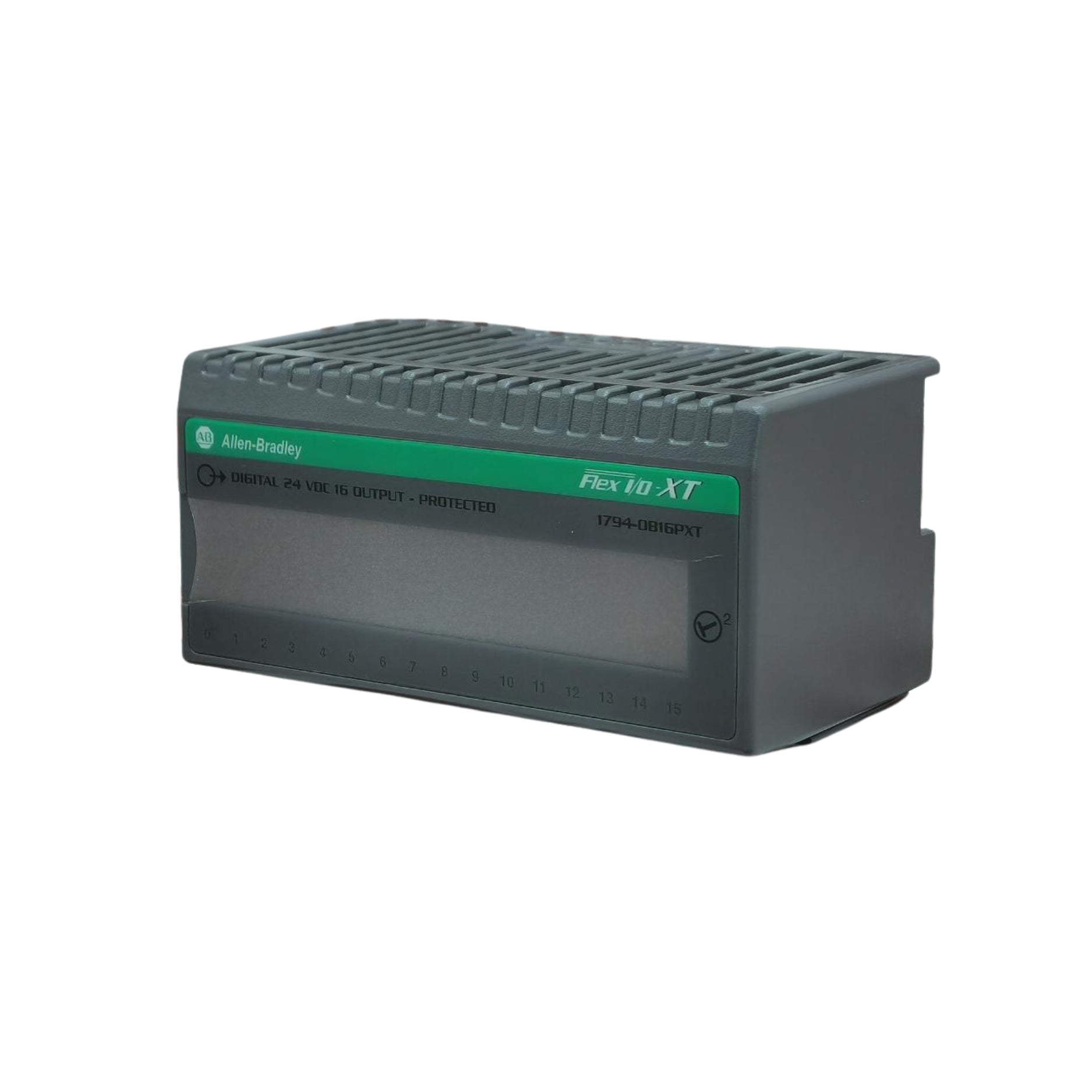

Allen-Bradley 1794-OB16PXT | 24V DC Protected Digital Output Module – FLEX I/O Series

Overview

The Allen-Bradley 1794-OB16PXT is a 16-point 24V DC sourcing digital output module from the FLEX I/O series, featuring protected outputs and conformal coating for increased environmental resistance. This module is used for switching DC loads in distributed control systems, making it ideal for compact and modular automation applications.

Key Features

  • Number of Outputs: 16 sourcing (current sourcing, positive logic)

  • Output Voltage Range: 10–31.2V DC

  • Output Current:

    • 0.5A per channel

    • 8A per module total

  • Output Protection: Electronic protection for short circuits and overloads

  • Conformal Coated: Enhanced protection in harsh environments

  • Module Type: Digital output for FLEX I/O system

  • Mounting: DIN rail via terminal base (1794-TB3, TB3S, etc.)

Technical Specifications

  • Part Number: 1794-OB16PXT

  • Series: FLEX I/O

  • Output Delay: ≤ 0.5 ms ON/OFF

  • Isolation Voltage: 50V (continuous)

  • Power Dissipation: 4.5 W max

  • Environmental Protection: Conformal coated for increased durability

  • Operating Temperature: –20°C to +70°C

  • Certifications: CE, UL, cULus, RoHS, ATEX (Zone 2)

Applications

  • Machine control and modular automation

  • Remote I/O stations in hazardous or industrial environments

  • High-density DC output requirements

  • Water/wastewater, oil & gas, and manufacturing industries

  • Allen-Bradley FLEX I/O-based distributed systems

Why Choose the 1794-OB16PXT?

  • High-Density Output: 16 channels in a compact module

  • Protected Outputs: Built-in electronic protection improves reliability

  • Wide Voltage Support: Operates from 10–31.2V DC

  • Robust Build: Conformal coating for tough environments

  • Compatible with FLEX I/O Ecosystem: Seamless integration into Rockwell systems

Order Now

The Allen-Bradley 1794-OB16PXT is available and ready for global delivery.

New & Genuine Products – Factory Sealed At PLCpartssolution, all our products are 100% new, genuine, and come in original factory-sealed packaging. We guarantee authentic components that meet the highest industry standards for performance and reliability.
1-Year Warranty Included All new products sold by PLCpartssolution come with a 1-year warranty. We stand behind the quality and reliability of our parts, ensuring coverage against manufacturing defects under normal operating conditions.
Disclaimer: PLCpartssolution is an independent supplier of surplus and refurbished industrial automation products. We are not an authorized distributor, reseller, or representative of the brands listed on this website. All trademarks, brand names, and logos are the property of their respective owners. PLCpartssolution is not affiliated with, endorsed by, or approved by ABB, Fanuc, B&R, Rockwell Automation, Schneider Electric, Siemens, or any other manufacturers mentioned.
