I/O terminal base, 36-pin, with factory-installed fuses, DIN rail mountable.

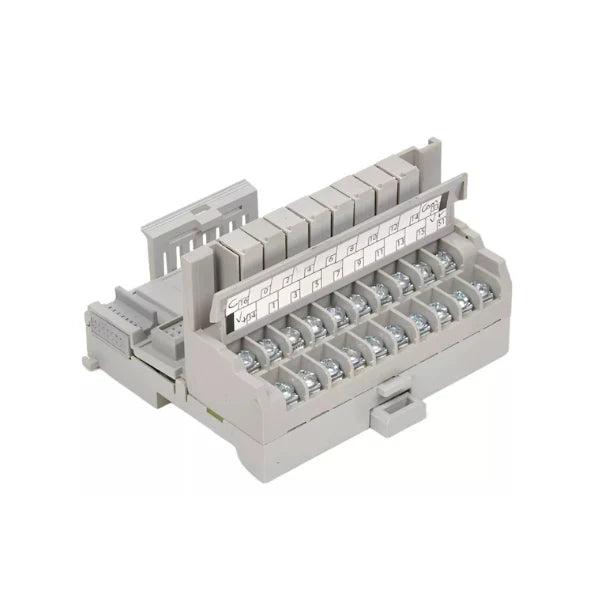

Allen-Bradley 1794-TBNF

SKU: 1794-TBNF
Your Price:
$180.00
Add to wishlist
Checkout Secure
Order in the next to get it by

10+ Available in Stock

  • Image of Free Shipping on All Orders

    Free Shipping on All Orders
  • Image of 1 Year Warranty

    We will beat any price

    1 Year Warranty
  • Image of Experts Aavaiable 7/24/365

    Free shipping

    Experts Aavaiable 7/24/365
  • Image of 30 days money-back

    30 days money-back

Allen-Bradley 1794-TBNF | Fused Terminal Base Unit | 36-Pin | For FLEX I/O Modules | DIN Rail Mountable

Overview

The Allen-Bradley 1794-TBNF is a FLEX I/O terminal base unit with 36-pin connections and factory-installed fuses, designed to interface FLEX I/O modules with field wiring. It provides quick and secure DIN rail mounting and supports high-density wiring for distributed control applications.

Key Features

  • Terminal Type: 36-pin

  • Fuse Configuration: Factory-installed fuses for output protection

  • Mounting: Standard 35mm DIN rail

  • Module Compatibility: Supports all 1794 FLEX I/O modules

  • Wiring Interface: Screw terminals

  • Design: Compact and modular

  • Installation: Plug-and-play module attachment

Technical Specifications

  • Catalog Number: 1794-TBNF

  • Voltage Rating: 125V max

  • Current Rating: 10A max per terminal

  • Fuse Type: 5x20 mm cartridge, pre-installed

  • Dimensions (HxWxD): Approx. 76 x 94 x 70 mm

  • Environmental: IP20 (when properly installed in enclosure)

  • Operating Temperature: 0°C to 55°C

  • Certifications: UL, CE, CSA, RoHS

Applications

  • Distributed I/O systems

  • Machine-level and remote I/O setups

  • Process control panels

  • OEM automation designs

  • Safety-rated circuits with fuse protection

Why Choose the 1794-TBNF?

  • Simplifies Field Wiring for FLEX I/O Modules

  • Integrated Fuse Protection for Output Safety

  • Compact Design Ideal for Dense Installations

  • Quick DIN Rail Mounting and Removal

  • Compatible with All Allen-Bradley 1794 I/O Modules

Order Now

The Allen-Bradley 1794-TBNF terminal base is available and ready to ship globally.

New & Genuine Products – Factory Sealed At PLCpartssolution, all our products are 100% new, genuine, and come in original factory-sealed packaging. We guarantee authentic components that meet the highest industry standards for performance and reliability.
1-Year Warranty Included All new products sold by PLCpartssolution come with a 1-year warranty. We stand behind the quality and reliability of our parts, ensuring coverage against manufacturing defects under normal operating conditions.
Disclaimer: PLCpartssolution is an independent supplier of surplus and refurbished industrial automation products. We are not an authorized distributor, reseller, or representative of the brands listed on this website. All trademarks, brand names, and logos are the property of their respective owners. PLCpartssolution is not affiliated with, endorsed by, or approved by ABB, Fanuc, B&R, Rockwell Automation, Schneider Electric, Siemens, or any other manufacturers mentioned.
