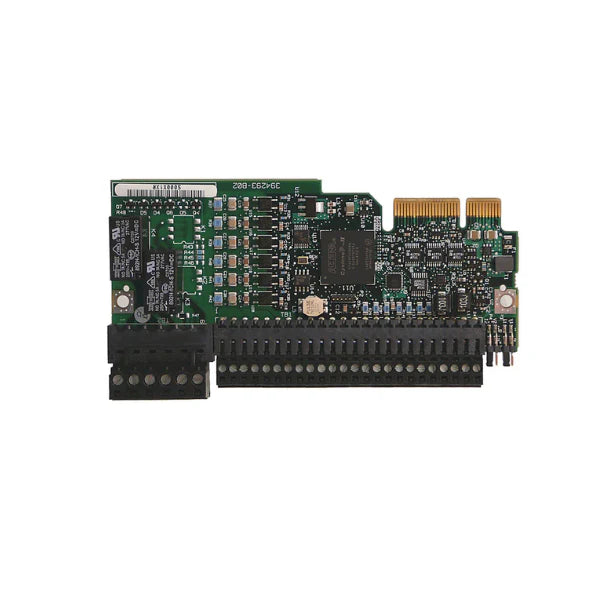

Allen-Bradley 20-750-1132C-2R | 32-Point I/O Module | 20 Digital Inputs & 12 Relay Outputs | 24V DC | For PowerFlex 753/755 Drives

Overview

The Allen-Bradley 20-750-1132C-2R is a digital I/O option module for the PowerFlex 750 series drives (753 and 755). It provides 20 digital inputs and 12 relay outputs, operating at 24V DC, and enhances the drive's control capabilities for complex applications. Ideal for users who require expanded local I/O within the drive system.

Key Features

  • Digital Inputs: 20

  • Digital Outputs: 12 relay contacts

  • Voltage Rating: 24V DC logic

  • Relay Contact Rating: 2A @ 250V AC / 30V DC

  • Mounting: Internal to PowerFlex 753/755 drives

  • Status LEDs: Indicate input/output state and module health

  • Configuration: Done via Studio 5000 or drive HIM

  • Use Case: Local machine control, interlocks, alarms, sensors, etc.

Technical Specifications

  • Catalog Number: 20-750-1132C-2R

  • Drive Compatibility: PowerFlex 753 and PowerFlex 755

  • Power Supply: Draws power from drive backplane

  • Input Type: 24V DC, sourcing/sinking (configurable)

  • Relay Type: Form C contacts (SPDT)

  • Isolation: Optical isolation between input and output circuits

  • Certifications: UL, CE, CSA, RoHS

  • Operating Temperature: 0°C to 50°C

Applications

  • Packaging and bottling lines

  • Material handling and conveyor systems

  • HVAC fans and pumps

  • Machine interlocking

  • Drive-based control applications requiring additional I/O

Why Choose the 20-750-1132C-2R?

  • Significantly expands drive I/O capacity

  • Simplifies control by integrating I/O into the drive

  • Relay outputs provide reliable isolation for actuators

  • Reduces need for external I/O modules or PLC cards

  • Ideal for standalone or networked drive configurations

Order Now

The Allen-Bradley 20-750-1132C-2R I/O option module is available and ready for immediate worldwide shipping.
