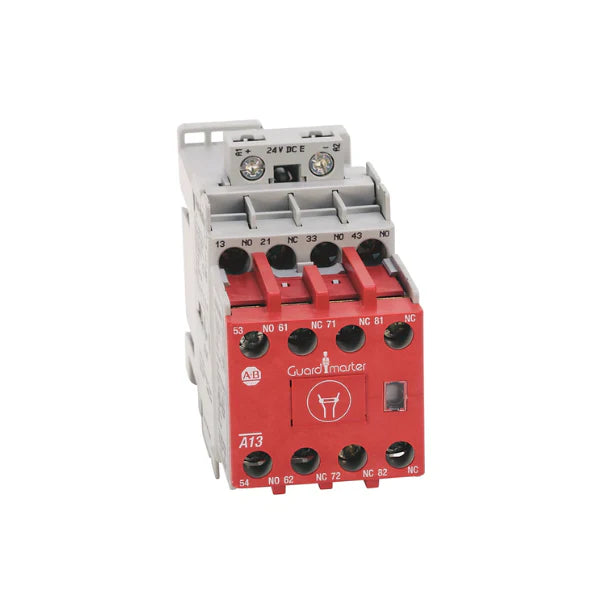

Allen-Bradley 700S-CF620DJC
Overview
The Allen-Bradley 700S-CF620DJC is a 4-pole safety control relay designed for applications requiring redundant and monitored safety circuits. This relay features a 24V DC coil, supports up to 600V AC contact ratings, and includes mechanically linked mirror contacts per IEC 60947-4-1 for fail-safe feedback. Part of the 700S series, it is ideal for use in safety-related applications such as emergency stop circuits, guard doors, and light curtain interfaces.
Key Features
-
Number of Poles: 4 (2 N.O. + 2 N.C. or similar configuration)
-
Coil Voltage: 24V DC
-
Contact Rating: Up to 600V AC / 10A
-
Mechanically linked (mirror) contacts for safety feedback
-
DIN rail and panel mount compatible
-
Finger-safe terminals
-
Designed for safety applications requiring control reliability
-
Complies with IEC/EN 60947-4-1 and ISO 13849-1 standards
-
UL, CSA, CE certified
Technical Specifications
-
Catalog Number: 700S-CF620DJC
-
Contact Configuration: 4-pole (varies by model, confirm exact wiring diagram)
-
Coil Voltage: 24V DC
-
Rated Voltage: 600V AC
-
Switching Capacity: 10A at 250V AC (resistive)
-
Contact Type: Mirror contacts
-
Electrical Life: ≥ 100,000 operations at rated load
-
Mechanical Life: ≥ 10 million operations
-
Operating Temperature: -25°C to +60°C (-13°F to +140°F)
-
Mounting: DIN rail or panel
-
Standards: IEC 60947-4-1, ISO 13849-1, UL 508, CSA
-
Weight: Approx. 1.1 lbs (0.5 kg)
Applications
-
Safety interlock and emergency stop circuits
-
Category 2 and 4 safety control systems
-
Press control and light curtain monitoring
-
Machine guard door monitoring
-
Motor control with feedback requirements
Why Choose the 700S-CF620DJC
-
Includes mirror contacts for enhanced safety diagnostics
-
High voltage and current capacity for industrial use
-
Meets international safety and control reliability standards
-
Designed for long mechanical and electrical life
Order Now
The Allen-Bradley 700S-CF620DJC safety control relay is available and ships worldwide.
