Allen-Bradley 800H-FRXT6A5

Overview

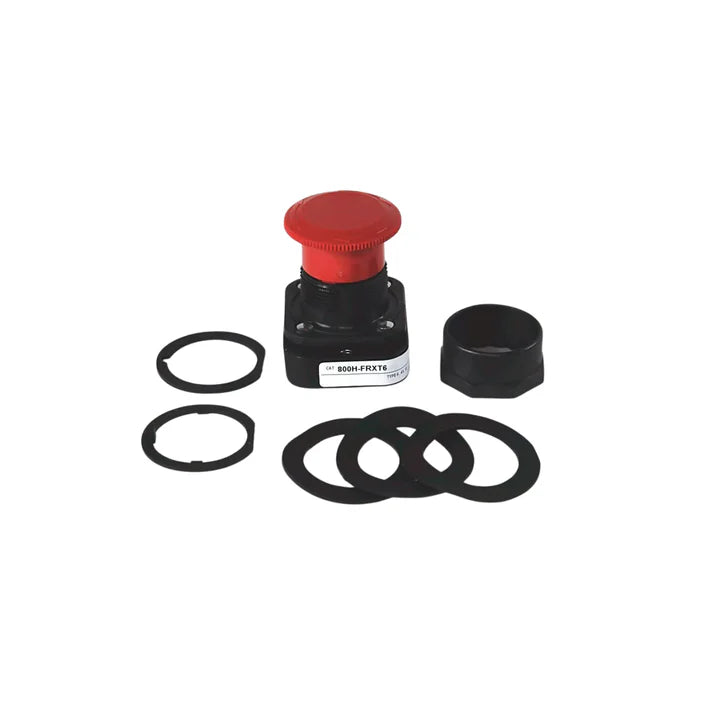

The Allen-Bradley 800H-FRXT6A5 is a robust 30.5mm push-pull/twist release push button designed for industrial applications requiring emergency stop and control functions. Featuring a red mushroom head and 2-position maintained action, this operator ensures reliable performance in demanding environments. Its Type 4/4X/13 rating makes it suitable for use in harsh conditions, providing protection against dust, water, and corrosion.


Key Features

  • Operator Type: Push-Pull with Twist Release

  • Action: 2-Position Maintained

  • Head Type: Red Mushroom Head (40mm)

  • Mounting Hole Size: 30.5mm

  • Contact Configuration: 2 Normally Closed Late Break (NCLB) Contacts

  • Enclosure Ratings: Type 4, 4X, 13

  • Material: Plastic Operator with Glass-Filled Nylon Bezel

  • Terminal Type: Screw Terminals


Technical Specifications

  • Catalog Number: 800H-FRXT6A5

  • Thermal Current Rating (Ith): 10 A

  • Utilization Category (AC): A600, AC-15

  • Utilization Category (DC): Q600, DC-13

  • Maximum Operational Voltage: 600V AC/DC

  • Mechanical Life: 250,000 cycles

  • Electrical Life: 1,000,000 cycles at max load

  • Operating Temperature: -25°C to +55°C

  • Storage Temperature: -40°C to +85°C

  • Ingress Protection: IP66

  • Shock Resistance: 25 G (contact fragility), 100 G (no damage)

  • Vibration Resistance: 10 G maximum

  • Wire Range: 14–18 AWG


Applications

  • Emergency stop functions

  • Industrial machinery control panels

  • Manufacturing and processing equipment

  • Harsh environment installations

  • Safety control systems


Why Choose the 800H-FRXT6A5

  • Durable Construction: Built to withstand harsh industrial environments

  • High Visibility: Red mushroom head ensures quick identification

  • Reliable Operation: Maintained action with twist release for secure control

  • Versatile Mounting: Fits standard 30.5mm panel cutouts

  • Compliance: Meets global standards and certifications for safety and performance


Order Now

The Allen-Bradley 800H-FRXT6A5 push button is available and ships worldwide.

New & Genuine Products – Factory Sealed At PLCpartssolution, all our products are 100% new, genuine, and come in original factory-sealed packaging. We guarantee authentic components that meet the highest industry standards for performance and reliability.
1-Year Warranty Included All new products sold by PLCpartssolution come with a 1-year warranty. We stand behind the quality and reliability of our parts, ensuring coverage against manufacturing defects under normal operating conditions.
Disclaimer: PLCpartssolution is an independent supplier of surplus and refurbished industrial automation products. We are not an authorized distributor, reseller, or representative of the brands listed on this website. All trademarks, brand names, and logos are the property of their respective owners. PLCpartssolution is not affiliated with, endorsed by, or approved by ABB, Fanuc, B&R, Rockwell Automation, Schneider Electric, Siemens, or any other manufacturers mentioned.
