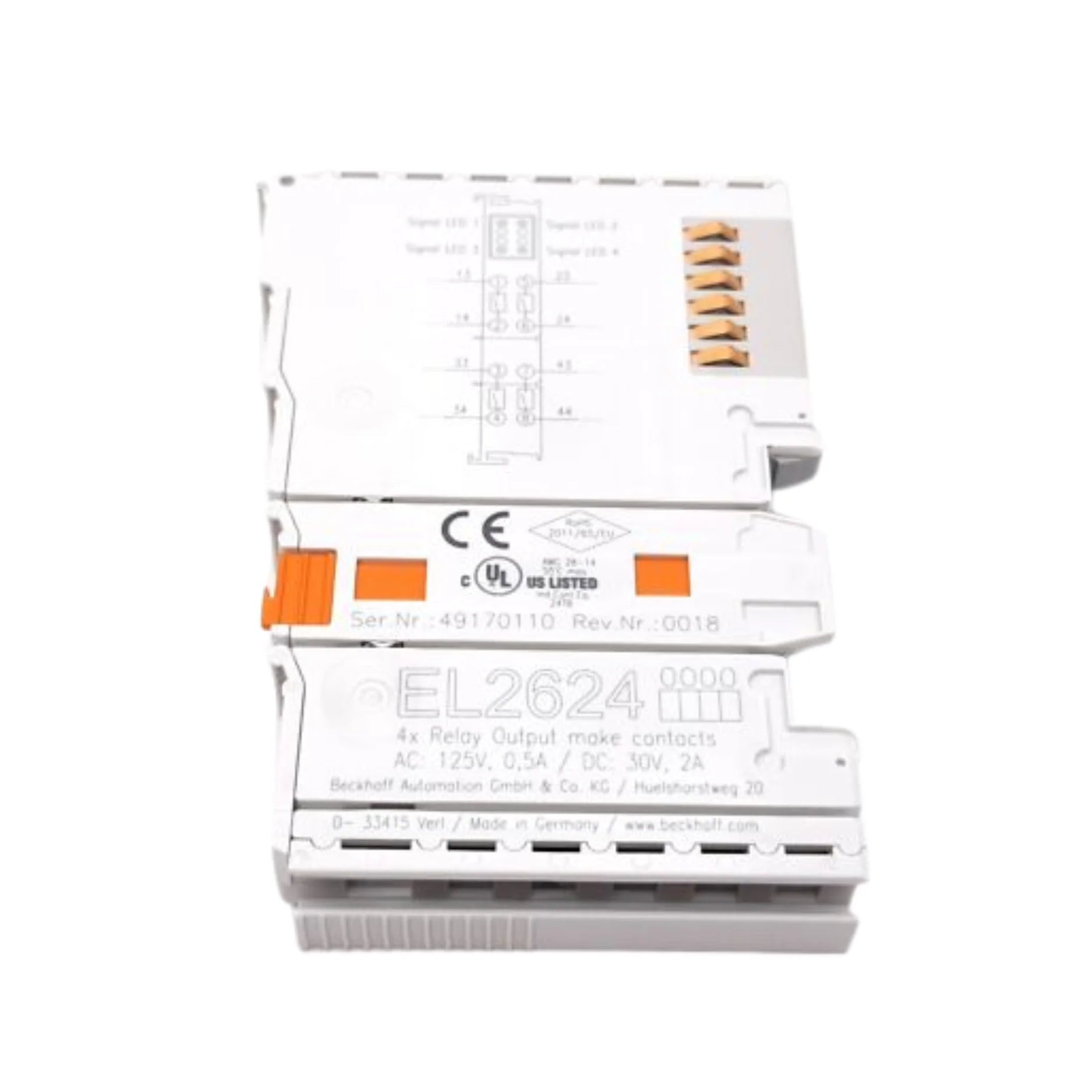

Beckhoff EL2624 – Overview

The Beckhoff EL2624 is an EtherCAT terminal designed to provide four relay outputs with isolated, potential-free make contacts. Each channel can handle nominal voltages up to 125 V AC or 30 V DC, and is suitable for switching ohmic loads and signal level applications. It includes signal-state LEDs for each channel and is optimized for modular automation installations.

Key Features

Four independent relay output channels (make contacts)
Rated for 125 V AC or 30 V DC nominal switching voltage
Current rating per channel: 0.5 A AC / 2 A DC (ohmic)
Potential-free contacts (no internal coupling to supply)
500 V electrical isolation between E-bus and field side
Compact module width: 12 mm; DIN-rail mountable format
Status LEDs for each output channel
Supports high switching cycles and industrial environment standards

Technical Specifications

Part Numbers:
– EL2624
– EL 2624
Number of Outputs: 4 (relay make contacts)
Nominal Voltage: 125 V AC / 30 V DC
Switching Current (ohmic): 0.5 A AC / 2 A DC per channel
Electrical Isolation: 500 V between E-bus and field potential
Current Consumption (E-bus): approx. 200 mA
Operating Temperature: -25 °C … +55 °C
Storage Temperature: -40 °C … +85 °C
Dimensions (W × H × D): 12 mm × 100 mm × 68 mm
Protection Rating: IP20
Manufacturer: Beckhoff Automation

Weight: 0.10 – 0.23 kg (0.22 – 0.50 lb)
Packed dimensions: 12 × 7 × 6 cm (4.7 × 2.8 × 2.4 in)

Applications

Switching of loads (resistive) in modular EtherCAT I/O systems
Integration of relay-controlled devices in automation networks
Distributed machine I/O requiring isolated output channels
Control cabinets with high-density I/O requirements

Why Choose Beckhoff EL2624

Compact relay output terminal for modular EtherCAT architecture
High isolation and flexible voltage rating makes it suitable for varied applications
Potential-free contacts allow integration with different supply domains
Benefit of Beckhoff module standards for reliable industrial automation

Order Now

The Beckhoff EL2624 4-Channel Relay Output Terminal is available for order and ships worldwide.
