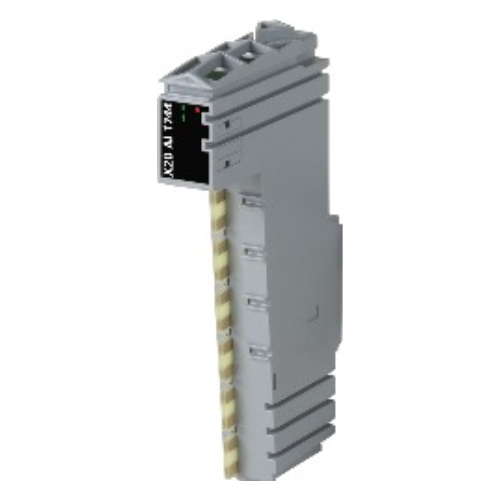

B&R X20AI1744 4-channel thermocouple input module, 16-bit, DIN-rail mount

B&R X20AI1744

SKU: X20AI1744
Your Price:
$930.00
Add to wishlist
Checkout Secure
Order in the next to get it by

10+ Available in Stock

  • Image of Free Shipping on All Orders

    Free Shipping on All Orders
  • Image of 1 Year Warranty

    We will beat any price

    1 Year Warranty
  • Image of Experts Aavaiable 7/24/365

    Free shipping

    Experts Aavaiable 7/24/365
  • Image of 30 days money-back

    30 days money-back

B&R X20AI1744

Overview

The B&R X20AI1744 is a 4-channel analog input module for thermocouples, part of the X20 I/O series. It supports a wide range of thermocouple types including Type J, K, T, E, N, S, and R, making it ideal for temperature monitoring across diverse industrial environments. With 16-bit resolution and integrated cold junction compensation, it delivers accurate and stable temperature measurements in compact DIN-rail installations.

Key Features

  • Number of Inputs: 4 analog channels

  • Sensor Type: Thermocouples (Types J, K, T, E, N, S, R)

  • Resolution: 16-bit

  • Integrated cold junction compensation

  • Galvanic isolation between channel group and bus

  • LED indicators for status and diagnostics

  • Compact DIN-rail mountable design

Technical Specifications

  • Catalog Number: X20AI1744

  • Number of Channels: 4

  • Supported Thermocouple Types: J, K, T, E, N, S, R

  • Resolution: 16-bit

  • Conversion Time: < 250 ms per channel

  • Cold Junction Compensation: Internal

  • Isolation: Channel group to backplane bus

  • Dimensions: 12.5 × 100 × 72 mm (W × H × D)

  • Weight: Approx. 70 g

  • Operating Temperature: 0 °C to 55 °C

  • Storage Temperature: –25 °C to +70 °C

  • Protection Class: IP20

  • Relative Humidity: 5% to 95%, non-condensing

  • Mounting: DIN rail

Applications

  • Industrial temperature monitoring and control

  • Food and beverage processing systems

  • Kilns, ovens, and furnaces

  • HVAC and environmental testing equipment

  • OEM automation with thermocouple feedback

Why Choose the X20AI1744

  • Supports multiple thermocouple types in one module

  • 16-bit resolution ensures precise measurement

  • Integrated cold junction compensation

  • Compact footprint for space-efficient panel design

  • Seamless integration with B&R X20 systems

Order Now

The B&R X20AI1744 thermocouple input module is available and ships worldwide.

New & Genuine Products – Factory Sealed At PLCpartssolution, all our products are 100% new, genuine, and come in original factory-sealed packaging. We guarantee authentic components that meet the highest industry standards for performance and reliability.
1-Year Warranty Included All new products sold by PLCpartssolution come with a 1-year warranty. We stand behind the quality and reliability of our parts, ensuring coverage against manufacturing defects under normal operating conditions.
Disclaimer: PLCpartssolution is an independent supplier of surplus and refurbished industrial automation products. We are not an authorized distributor, reseller, or representative of the brands listed on this website. All trademarks, brand names, and logos are the property of their respective owners. PLCpartssolution is not affiliated with, endorsed by, or approved by ABB, Fanuc, B&R, Rockwell Automation, Schneider Electric, Siemens, or any other manufacturers mentioned.
