FG1000BV-90DA thyristor, 1000 A 4500 V, optimized for power inverters and induction heating applications

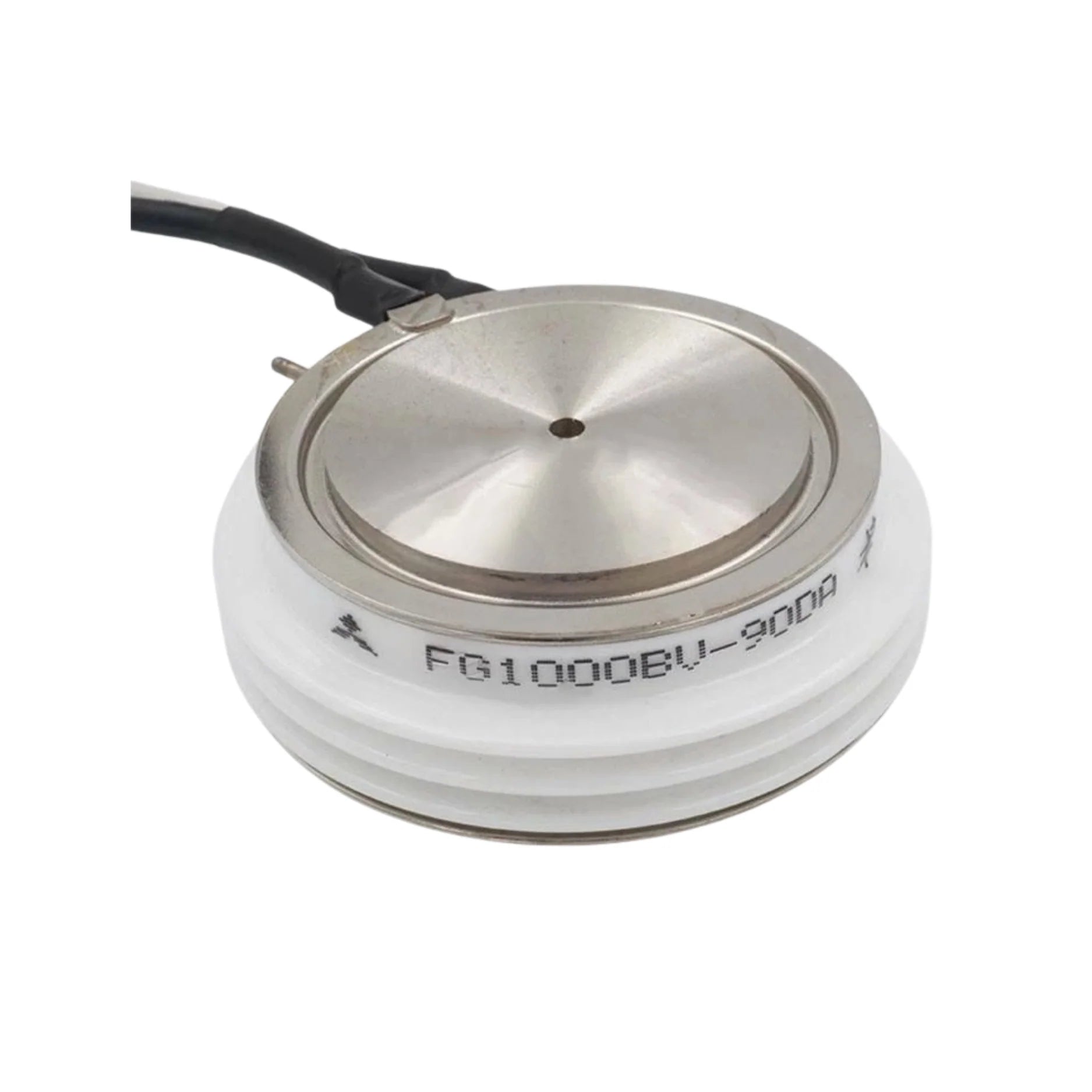

MITSUBISHI FG1000BV-90DA

Your Price:
$510.00
Add to wishlist
Checkout Secure
Order in the next to get it by

10+ Available in Stock

  • Image of Free Shipping on All Orders

    Free Shipping on All Orders
  • Image of 1 Year Warranty

    We will beat any price

    1 Year Warranty
  • Image of Experts Aavaiable 7/24/365

    Free shipping

    Experts Aavaiable 7/24/365
  • Image of 30 days money-back

    30 days money-back

FG1000BV-90DA

Overview

The FG1000BV-90DA is a high-performance Gate Turn-Off (GTO) thyristor designed for strong control in challenging industrial applications. With a repetitive peak off-state voltage of 4500 V and controllable current of 1000 A, it is perfect for high-power inverters, induction heating systems, DC choppers, and DC-DC converters. Its anode-short structure ensures fast turn-off and exceptional surge current tolerance.

Key Features

  • Rated off-state voltage: 4500 V

  • Repetitive controllable on-state current: 1000 A

  • Surge current capability: 8400 A

  • Anode short structure for quick switching

  • Suitable for 60 Hz sine wave and high dv/dt scenarios

  • Durable design with high thermal and electrical endurance

Technical Specifications

  • Device Type: Gate Turn-Off Thyristor (GTO)

  • Model: FG1000BV-90DA

  • VDRM/VRRM: 4500 V

  • ITQRM: 1000 A (Repetitive controllable on-state)

  • IT(RMS): 630 A

  • IT(AV): 400 A

  • ITSM: 8400 A (1-cycle surge current)

  • I²t: 2.9 × 10⁵ A²s

  • di/dt: 1000 A/μs

  • VFGM/VRGM: 20 V / 5 V

  • IFGM/IRGM: 2 A / 0.2 A

  • PFGM/PRGM: 10 W / 2 W (peak), 0.5 W average

  • Junction Temp (Tj): –40 °C to +125 °C

  • Storage Temp (Tstg): –40 °C to +150 °C

  • Mounting Force: 12–15.5 kN

  • Weight: 530 g

  • Outline Diameter: Standard press-pack package

Applications

  • High-frequency inverters

  • DC choppers

  • DC–DC converters

  • Induction heating systems

  • Industrial motor drives

  • Pulse power systems

Why Choose FG1000BV-90DA

  • High-performance GTO for dependable switching under pressure

  • Optimized for rapid turn-off and excellent surge protection

  • Consistent operation over a broad temperature range

  • Reliable in heavy-duty industrial converter applications

Order Now

The FG1000BV-90DA thyristor is available and ready for worldwide shipping.

New & Genuine Products – Factory Sealed At PLCpartssolution, all our products are 100% new, genuine, and come in original factory-sealed packaging. We guarantee authentic components that meet the highest industry standards for performance and reliability.
1-Year Warranty Included All new products sold by PLCpartssolution come with a 1-year warranty. We stand behind the quality and reliability of our parts, ensuring coverage against manufacturing defects under normal operating conditions.
Disclaimer: PLCpartssolution is an independent supplier of surplus and refurbished industrial automation products. We are not an authorized distributor, reseller, or representative of the brands listed on this website. All trademarks, brand names, and logos are the property of their respective owners. PLCpartssolution is not affiliated with, endorsed by, or approved by ABB, Fanuc, B&R, Rockwell Automation, Schneider Electric, Siemens, or any other manufacturers mentioned.
