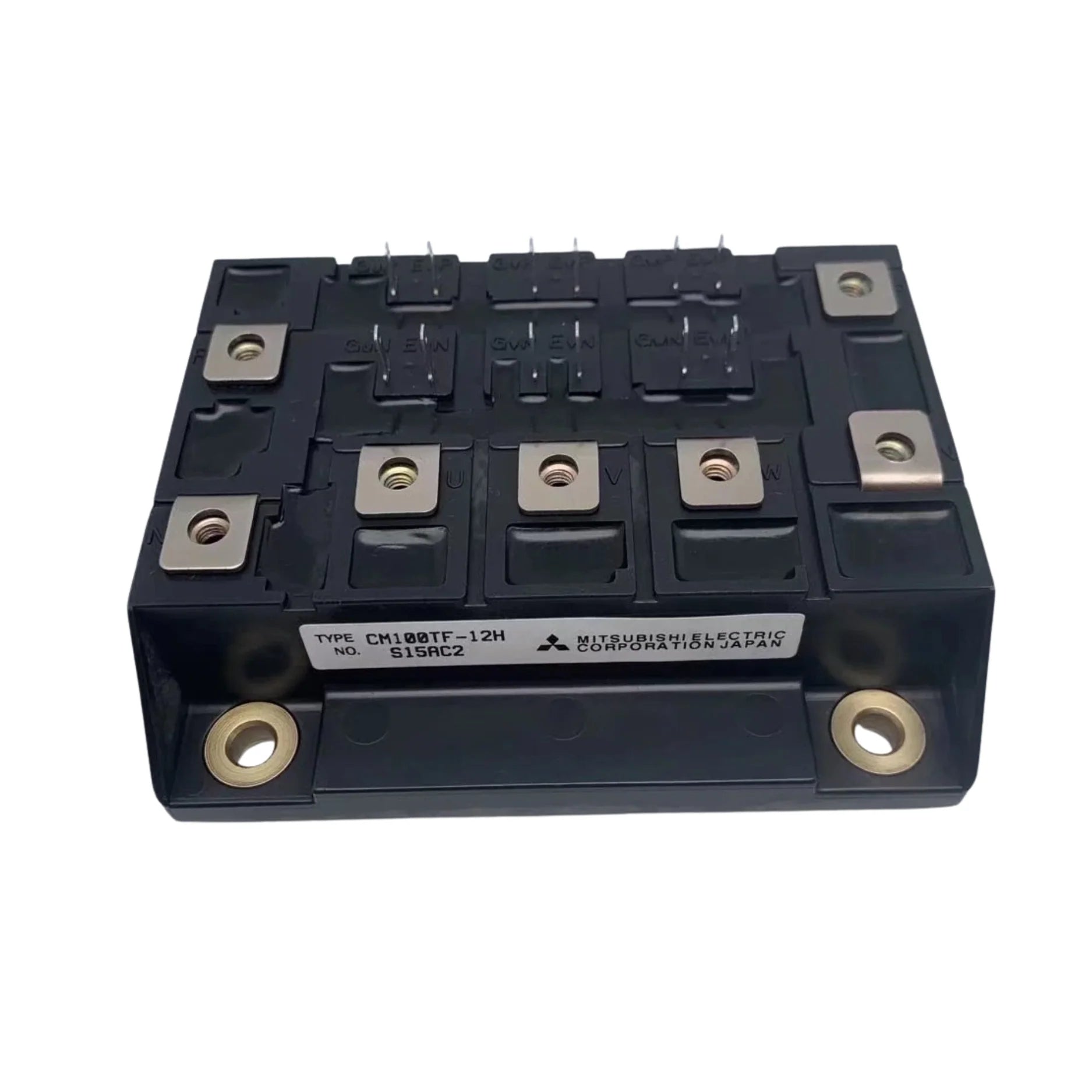

Mitsubishi CM100TF-12H

Overview

The Mitsubishi CM100TF-12H is a single IGBT module designed for 100 A and 600 V, suitable for industrial power switching applications. It offers fast switching with a planar IGBT structure and an integrated free-wheeling diode. Its insulated base and strong chassis-mount package ensure durability in tough environments.

Key Features

  • Single IGBT setup

  • Rated current: 100 A

  • Collector-emitter voltage: 600 V

  • Includes free-wheeling diode

  • Fast switching capabilities

  • Isolated baseplate for better thermal management

  • Durable chassis mount allows easy installation

  • Perfect for mid-power uses

Technical Specifications

  • Part Number: CM100TF-12H

  • Configuration: Single IGBT with diode

  • Collector Current: 100 A

  • Collector-Emitter Voltage: 600 V

  • VCE(sat): ~1.8–2.0 V at rated current

  • Gate-Emitter Voltage: ±20 V

  • Switching Speed: Fast

  • Thermal Resistance (Junction-Case): ~0.29 °C/W

  • Mounting Type: Chassis mount (isolated base)

  • Operating Temperature: –40 °C to +150 °C

  • Package Type: Industrial IGBT module

  • Weight: Approx. 200–250 g

Applications

  • General-purpose inverters

  • AC motor drives

  • Welding equipment

  • Power converters

  • Industrial automation systems

Why Choose the CM100TF-12H

  • Mitsubishi quality and durability

  • Fast and efficient power switching

  • Suitable for compact inverter designs

  • Easy to mount and cool

  • Reliable for long-term industrial use

Order Now

The Mitsubishi CM100TF-12H IGBT module is available for worldwide shipping.

This product belongs to our Mitsubishi IGBT Modules series, crafted for efficient power conversion in industrial settings.

Explore the Power Electronics Components main category to find diodes, thyristors, GTOs, MOSFETs, and other semiconductor solutions.



New & Genuine Products – Factory Sealed At PLCpartssolution, all our products are 100% new, genuine, and come in original factory-sealed packaging. We guarantee authentic components that meet the highest industry standards for performance and reliability.
1-Year Warranty Included All new products sold by PLCpartssolution come with a 1-year warranty. We stand behind the quality and reliability of our parts, ensuring coverage against manufacturing defects under normal operating conditions.
