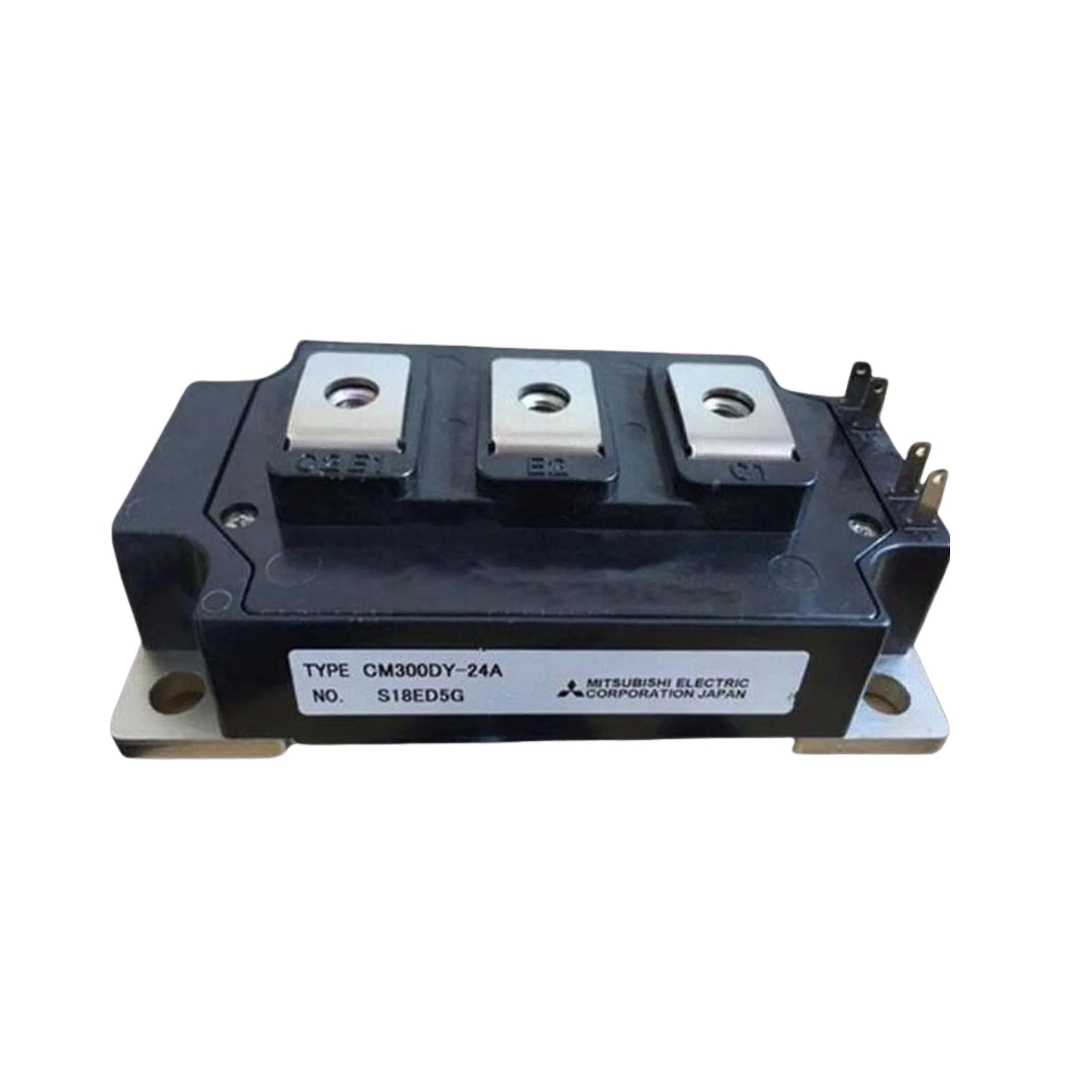

Mitsubishi CM300DY-24A module, 300 A, 1200 V, dual trench-gate, chassis mount design

Mitsubishi CM300DY-24A

Your Price:
$295.00
Add to wishlist
Checkout Secure
Order in the next to get it by

10+ Available in Stock

  • Image of Free Shipping on All Orders

    Free Shipping on All Orders
  • Image of 1 Year Warranty

    We will beat any price

    1 Year Warranty
  • Image of Experts Aavaiable 7/24/365

    Free shipping

    Experts Aavaiable 7/24/365
  • Image of 30 days money-back

    30 days money-back

Mitsubishi CM300DY-24A

Overview

The CM300DY-24A is a high-efficiency dual IGBT module from Mitsubishi Electric. With a rating of 300 A and 1200 V, it includes trench-gate technology and integrated free-wheeling diodes. Designed for power electronics applications such as inverters, UPS, motor drives, and other industrial systems requiring high currents and voltages.

Key Features

  • Dual IGBTs with fast-recovery diodes

  • Rated voltage: 1200 V

  • Rated current: 300 A continuous

  • Trench-gate structure for high efficiency and fast switching

  • Low VCE(sat) for reduced conduction loss

  • Insulated baseplate for simplified thermal integration

  • Chassis-mountable design for secure installation

  • Industrial-grade durability

Technical Specifications

  • Part Number: CM300DY-24A

  • Configuration: Dual IGBT in half-bridge

  • Collector Current (Ic): 300 A (continuous)

  • Collector-Emitter Voltage (Vces): 1200 V

  • Saturation Voltage (VCE(sat)): ~2.1 V at 300 A

  • Gate-Emitter Voltage (VGE): ±20 V max

  • Power Dissipation: ~1890 W (at 25 °C case temperature)

  • Thermal Resistance (Rth): IGBT ~0.066 °C/W

  • Operating Temperature: –40 °C to +150 °C

  • Isolation Voltage: 2500 V RMS

  • Mounting: Chassis with insulated base

  • Weight: Approx. 280 g

Applications

  • Industrial AC motor drives

  • Uninterruptible Power Supplies (UPS)

  • Renewable energy inverters

  • Welding equipment

  • High-power conversion systems

Why Choose the CM300DY-24A

  • High current capacity in compact form

  • Excellent switching performance

  • Mitsubishi’s proven reliability

  • Easy installation with standard chassis mount

  • Ideal for demanding industrial environments

Order Now

The Mitsubishi CM300DY-24A IGBT module is available and ships worldwide.

This product is part of our Mitsubishi IGBT Modules collection, designed for high-efficiency power conversion and reliable performance in industrial automation. Explore our full range of Mitsubishi IGBT Modules.

Explore the Power Electronics Components main category to discover diodes, thyristors, GTOs, MOSFETs, and other semiconductor solutions.

New & Genuine Products – Factory Sealed At PLCpartssolution, all our products are 100% new, genuine, and come in original factory-sealed packaging. We guarantee authentic components that meet the highest industry standards for performance and reliability.
1-Year Warranty Included All new products sold by PLCpartssolution come with a 1-year warranty. We stand behind the quality and reliability of our parts, ensuring coverage against manufacturing defects under normal operating conditions.
Disclaimer: PLCpartssolution is an independent supplier of surplus and refurbished industrial automation products. We are not an authorized distributor, reseller, or representative of the brands listed on this website. All trademarks, brand names, and logos are the property of their respective owners. PLCpartssolution is not affiliated with, endorsed by, or approved by ABB, Fanuc, B&R, Rockwell Automation, Schneider Electric, Siemens, or any other manufacturers mentioned.
