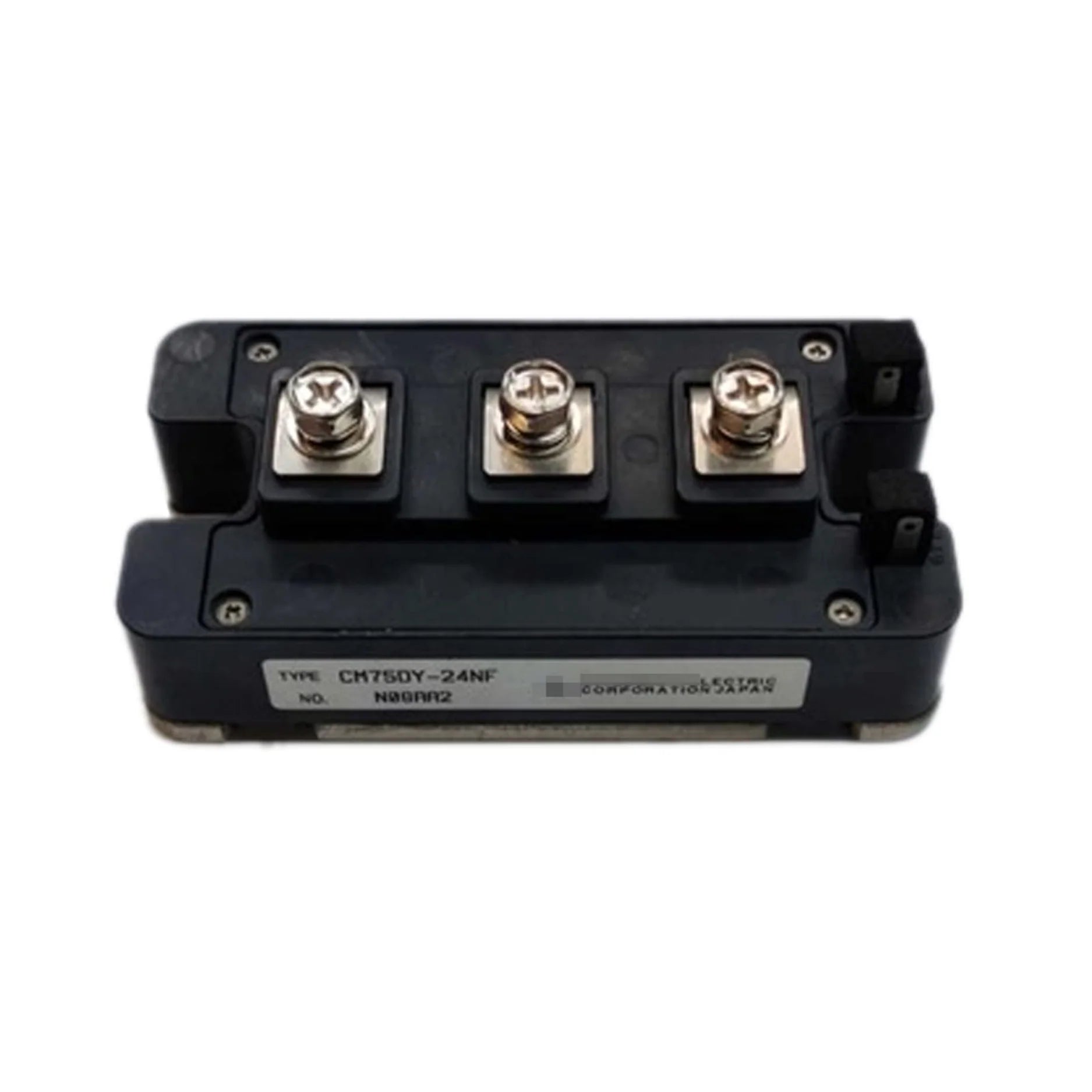

Mitsubishi CM75DY-24NF

Overview

The Mitsubishi CM75DY-24NF is a dual IGBT module rated at 75 A and 1200 V, perfect for efficient, compact power systems. Featuring trench-gate IGBT technology and built-in free-wheeling diodes, this module offers remarkable switching performance and thermal durability. Its insulated baseplate and tough design assure long-lasting operation in industrial settings.

Key Features

  • Dual IGBT half-bridge configuration

  • Collector current: 75 A

  • Collector-emitter voltage: 1200 V

  • Trench-gate structure for low switching losses

  • Integrated fast-recovery diodes

  • Insulated baseplate for effective heat dissipation

  • Compact chassis mount housing

  • High-performance in a compact footprint

Technical Specifications

  • Part Number: CM75DY-24NF

  • Configuration: Dual IGBT with diodes

  • Collector Current: 75 A

  • Collector-Emitter Voltage: 1200 V

  • VCE(sat): ~2.0 V @ rated current

  • Gate-Emitter Voltage: ±20 V

  • Thermal Resistance (Junction-Case): ~0.28 °C/W

  • Switching Speed: Fast

  • Mounting Type: Chassis mount (isolated base)

  • Operating Temperature: –40 °C to +150 °C

  • Package Type: Power module

  • Weight: Approx. 200–300 g

Applications

  • Inverter systems and power supplies

  • Motor drives and robotics

  • Industrial automation equipment

  • Renewable energy converters

  • Compact power switching solutions

Why Choose the CM75DY-24NF

  • Efficient 75 A switching in a compact design

  • Mitsubishi's reliable trench-gate IGBT technology

  • Built for long-term thermal and electrical performance

  • Easy to integrate with standard industrial systems

  • Ideal for mid-power industrial applications
