Omron NX-RS1201 | Precision Load Cell Input Unit for Industrial Automation

Overview

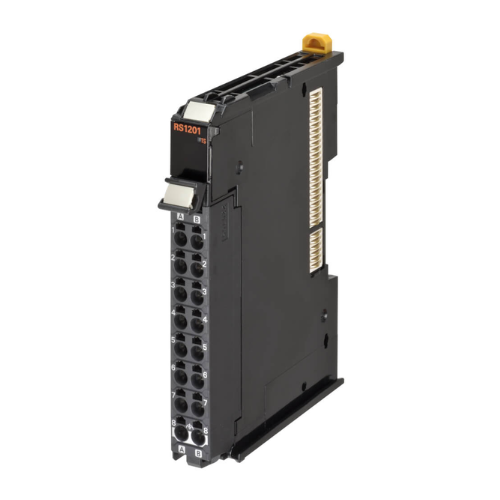

The Omron NX-RS1201 is a high-precision Load Cell Input Unit designed for seamless integration with the NX Series I/O system. It converts load cell outputs into accurate weight or force measurements, facilitating real-time data acquisition in industrial automation applications. With a 24-bit A/D converter, 125 μs conversion time, and robust accuracy specifications, the NX-RS1201 ensures reliable and precise measurements essential for quality control and process optimization.

Key Features

• High-Speed Conversion: Achieves a conversion cycle of 125 μs, enabling rapid data acquisition for dynamic processes.

• High Accuracy: Features nonlinearity of ±0.01% full scale, zero drift of ±0.1 μV/°C RTI, and gain drift of ±10 ppm/°C, ensuring precise measurements.

• 24-bit Resolution: Provides detailed and accurate digital representation of analog load cell signals.

• Excitation Voltage: Supplies a stable 5 VDC ±10% excitation voltage with a maximum output current of 60 mA to the load cell.

• Adjustable Ranges: Offers zero point and gain point adjustment ranges from -5.0 to 5.0 mV/V, allowing for flexible calibration.

• Compact Design: Slim profile with dimensions of 12 mm (W) × 100 mm (H) × 71 mm (D) facilitates space-saving installation.

• Easy Wiring: Equipped with a screwless clamping terminal block for quick and secure connections.

• IP20 Protection: Ensures protection against solid objects, suitable for controlled industrial environments.

Technical Specifications

• Model Number: NX-RS1201

• Input Range: -5.0 to 5.0 mV/V

• Input Conversion Range: -5.5 to 5.5 mV/V

• Load Cell Excitation Voltage: 5 VDC ±10%, 60 mA max.

• Nonlinearity: ±0.01% full scale

• Zero Drift: ±0.1 μV/°C RTI

• Gain Drift: ±10 ppm/°C

• A/D Converter Resolution: 24 bits

• Conversion Cycle: 125 μs

• Isolation: Between input and NX bus: Power = Transformer, Signal = Digital isolator

• Dimensions: 12 mm (W) × 100 mm (H) × 71 mm (D)

• Weight: 70 g max.

• Degree of Protection: IP20

• Mounting: DIN rail

Applications

• Weighing Systems: Accurate weight measurement in packaging, batching, and filling operations.

• Force Measurement: Precise force monitoring in assembly lines and material testing.

• Process Control: Integration into systems requiring real-time load monitoring for quality assurance.

• Automation Systems: Enhances machine automation by providing critical load data for control algorithms.

Why Choose Omron NX-RS1201?

• Precision and Speed: Combines high-resolution measurement with rapid conversion for real-time applications.

• Seamless Integration: Designed for compatibility with Omron's NX Series, ensuring easy system integration.

• Reliable Performance: Stable excitation voltage and minimal drift contribute to consistent measurement accuracy.

• User-Friendly Design: Compact form factor and easy wiring facilitate straightforward installation and maintenance.
