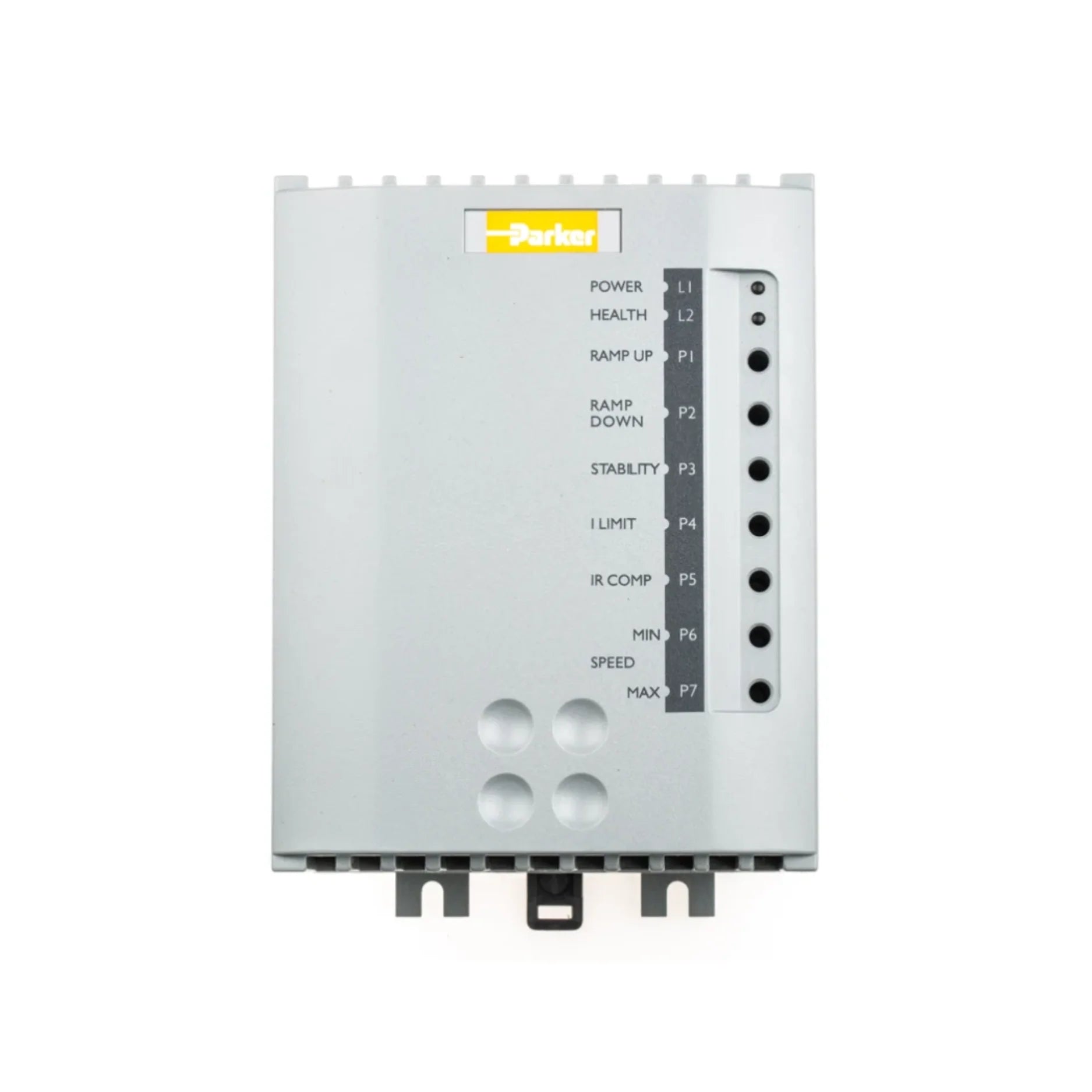

Parker 506-00-20-00 industrial automation part for professional systems and control applications

Parker 506-00-20-00

SKU: 506-00-20-00
Your Price:
$2,650.00
Add to wishlist
Checkout Secure
Order in the next to get it by

10+ Available in Stock

  • Image of Free Shipping on All Orders

    Free Shipping on All Orders
  • Image of 1 Year Warranty

    We will beat any price

    1 Year Warranty
  • Image of Experts Aavaiable 7/24/365

    Free shipping

    Experts Aavaiable 7/24/365
  • Image of 30 days money-back

    30 days money-back

Parker 506-00-20-00 – Overview

The Parker 506-00-20-00 (also known under the SSD 506 series) is an single-phase, analog, 1-quadrant DC drive engineered for dependable simple speed or torque control of DC motors. Rated at 3 A and compatible with either 110 V or 230 V supplies, it's well suited for lower-power uses like fans, pumps, and conveyors. This unit delivers a space‑saving footprint with selectable feedback options and a minimum cost of ownership for basic DC motor speed and torque control needs.

Key Features

  • 1-quadrant (forward direction) DC drive

  • Selectable supply voltage: 110 VAC or 230 VAC

  • Analog control (voltage or current input)

  • Feedback via tachometer or armature voltage

  • space‑saving, DIN-style housing with IP20 cover

  • well suited for OEM and retrofit uses

  • Simple and cost-effective control solution

Technical Specifications

  • Model / Part Number: 506-00-20-00

  • Continuous Output Current: 3 A

  • Supply Voltage: 110 VAC or 230 VAC (selectable)

  • Control Mode: 1-quadrant (no reverse)

  • Feedback Inputs: Tachometer or internal armature voltage

  • Dimensions: approx. 80 × 105 × 140 mm

  • Protection: IP20 covers

  • Ambient Temperature: 0 °C to 45 °C

  • Weight: ~1.3 kg

  • Terminals / Interface:
    – Analog control input (voltage/current)
    – Feedback input for tachometer or AVF
    – Supply input terminals
    – Output to motor (armature)

  • Standards Compliance: CE (Low Voltage, EMC), UL / C22.2

uses

  • Small DC motor drives in OEM equipment

  • Fans, blowers, pumps with simple speed control

  • Light-duty conveyor or packaging machinery

  • Replacement or retrofit for analog DC systems

Why Choose Parker 506-00-20-00

  • Very space‑saving and cost-effective for low-current DC control

  • Flexible supply voltage selection gives application versatility

  • Simple analog scheme without need for complex programming

  • Compatible with legacy DC installations

Order Now

The Parker 506-00-20-00 SSD 506 analog DC drive is in stock and ready to ship worldwide.


New & Genuine Products – Factory Sealed At PLCpartssolution, all our products are 100% new, genuine, and come in original factory-sealed packaging. We guarantee authentic components that meet the highest industry standards for performance and reliability.
1-Year Warranty Included All new products sold by PLCpartssolution come with a 1-year warranty. We stand behind the quality and reliability of our parts, ensuring coverage against manufacturing defects under normal operating conditions.
Disclaimer: PLCpartssolution is an independent supplier of surplus and refurbished industrial automation products. We are not an authorized distributor, reseller, or representative of the brands listed on this website. All trademarks, brand names, and logos are the property of their respective owners. PLCpartssolution is not affiliated with, endorsed by, or approved by ABB, Fanuc, B&R, Rockwell Automation, Schneider Electric, Siemens, or any other manufacturers mentioned.
