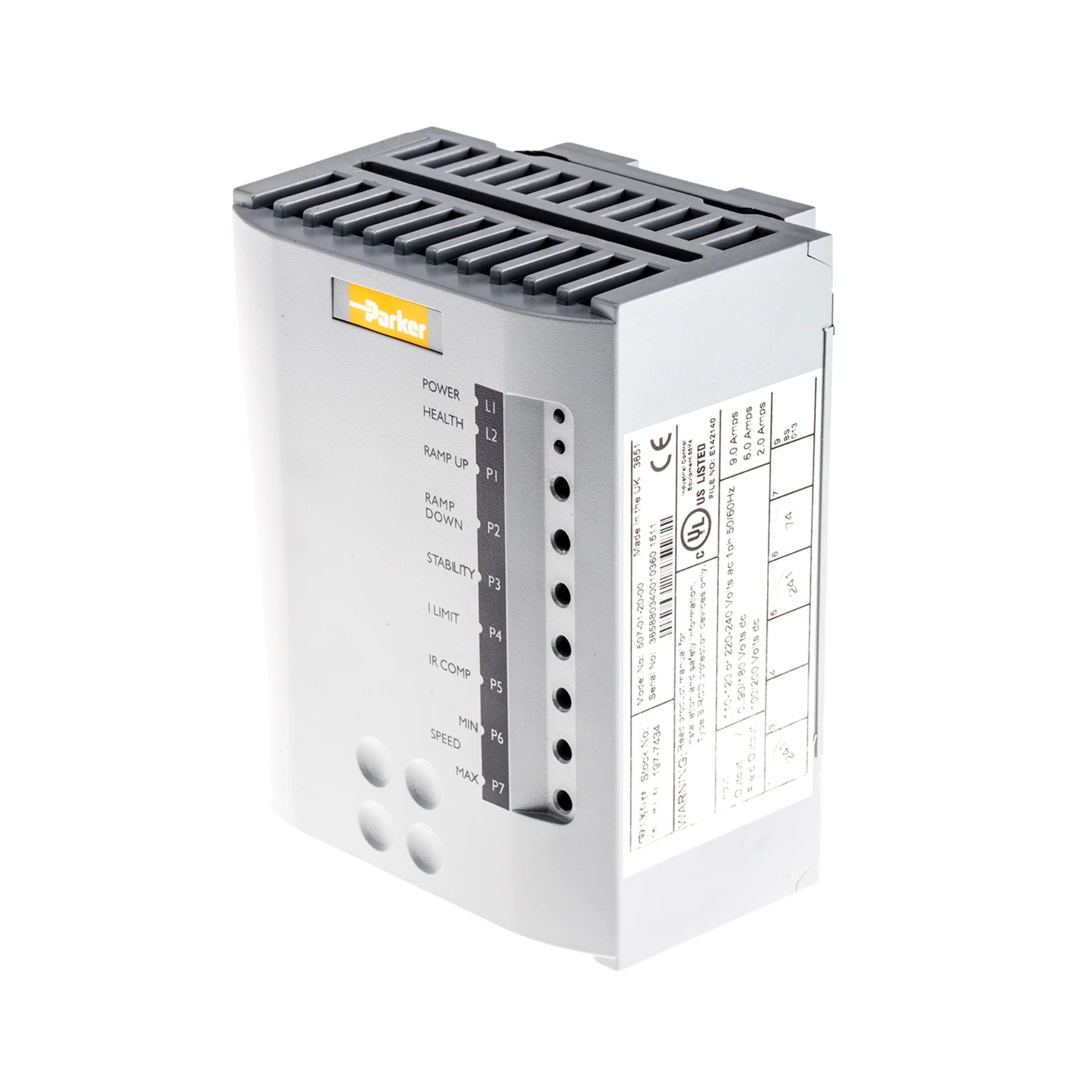

Parker 507-00-20-00 – Overview

The Parker SSD 507-00-20-00 is an 6 A, single-phase, 1-quadrant analog DC thyristor drive, engineered for dependable use with 230 V or 110 V AC inputs. This non-isolated unit provides dependable and cost-effective speed and torque control for small DC motors, making it an excellent choice for OEM and retrofit uses.

With space‑saving dimensions and a simple analog setup, the SSD 507 drive is easy to integrate into existing systems and delivers consistent, efficient operation.

Key Features

1-quadrant (forward) DC motor speed and torque control
Non-isolated analog design
Input supply: 110 V or 230 V single-phase AC
Continuous output: 6 A (up to 9 A depending on motor inductance)
Selectable feedback: tachometer or armature voltage
DIN-rail or panel mount installation
space‑saving and cost-effective for light-duty uses

Technical Specifications

Part Numbers:
– 507-00-20-00
– 507/00/20/00
Continuous Output Current: 6 A (up to 9 A depending on motor inductance)
Input Supply Voltage: 110 V or 230 V AC ±10% at 50/60 Hz
Motor Power Output:
– 230 V AC supply: 0.9 kW (1.2 HP) from 180 V DC
– 110 V AC supply: 0.43 kW (0.6 HP) from 90 V DC
Feedback Options: Tachometer input or armature voltage feedback
Control Inputs/Outputs:
– Speed setpoint input
– Current limit input (0–10 V = 0–100% after preset limit)
– Run input / Zero speed trim
– Auxiliary I/O (Zero speed, Health outputs, extra setpoints)
– +10 V reference output for potentiometer
Physical Size: 105 mm (W) × 80 mm (D) × 140 mm (H)
Mounting: DIN-rail or panel mount with 3 screws
Cooling: Natural convection, with 50 mm clearance above/below
Heat Dissipation: 20 W at maximum output
Ambient Temperature: Rated at 40 °C

uses

Small motor drives in light industrial equipment
Fans, pumps, and small conveyors
OEM systems requiring low-power DC motor speed and torque control
Retrofits for older analog DC drives

Why Choose Parker 507-00-20-00

Flexible operation on 110 V or 230 V supply
dependable analog design, easy to configure
Cost-effective solution for space‑saving installations
Proven Parker SSD operation and durability
