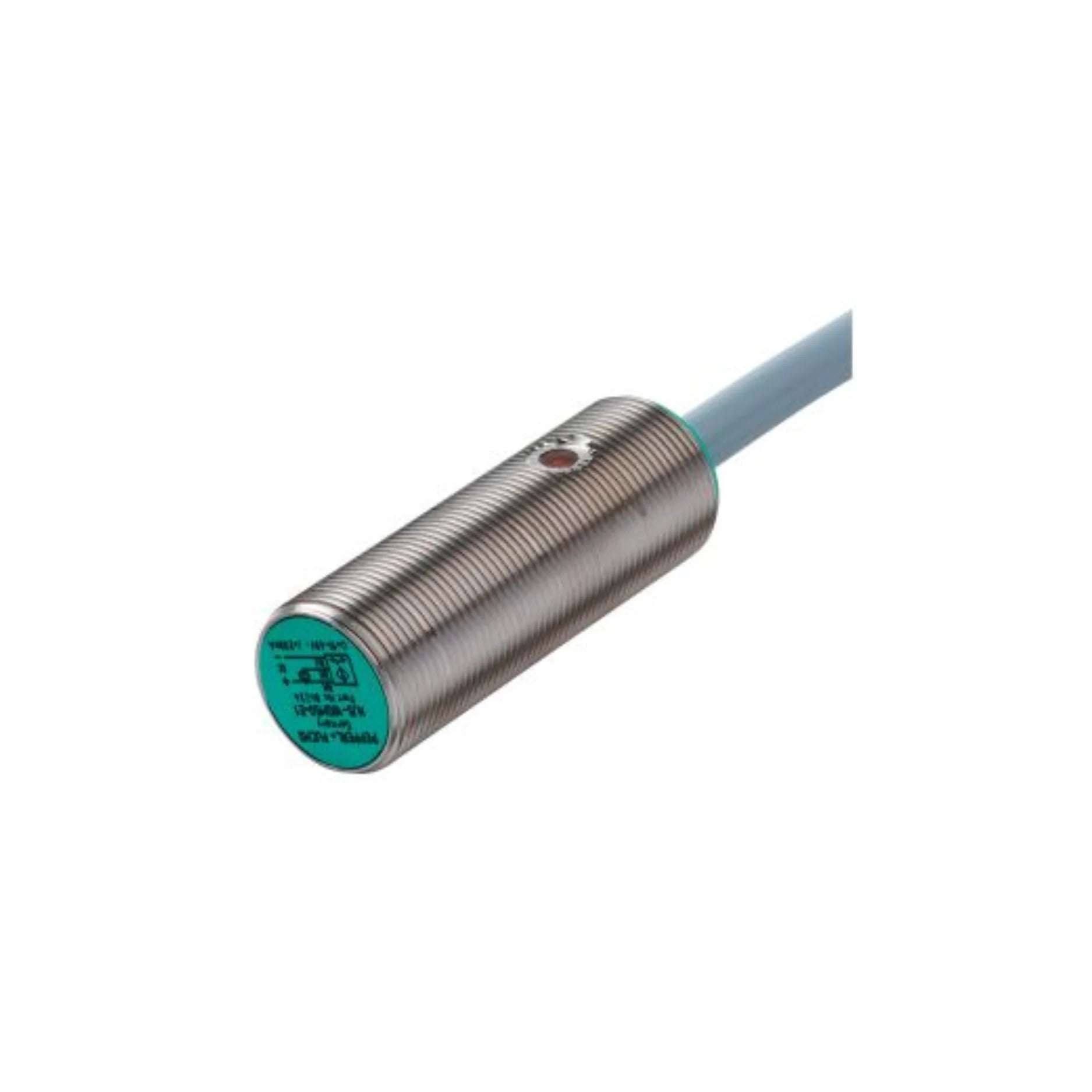

Pepperl+Fuchs NJ5-18GM50-E2 | Cylindrical M18 Inductive Sensor for Precise Metal Detection
Overview
The NJ5-18GM50-E2 from Pepperl+Fuchs is a robust M18 cylindrical inductive proximity sensor with a 5 mm sensing range, PNP normally open output, and an M12 quick-connect interface. Built to withstand industrial conditions, this sensor offers dependable performance with IP67-rated protection for automation systems requiring precise and compact metal detection.
Key Features
-
5 mm Sensing Distance – Flush-mount detection for close-range applications
-
PNP Output (NO) – Standard logic for digital input compatibility
-
M18 Housing – Durable threaded cylindrical design
-
M12 Connector – Easy and fast plug-in connection
-
IP67 Protection – Water and dust-resistant for harsh environments
-
3-Wire DC Configuration – Simplifies wiring and integration
Technical Specifications
-
Model: NJ5-18GM50-E2
-
Part Number: 282955
-
Sensing Range: 5 mm (flush)
-
Output Type: PNP, Normally Open (NO)
-
Mounting Type: Flush mount
-
Housing: M18 x 50 mm, threaded
-
Connection: M12 connector, 4-pin
-
Voltage Supply: 10–30 V DC
-
Switching Frequency: ≤ 800 Hz
-
Housing Material: Nickel-plated brass
-
Protection Rating: IP67
-
Temperature Range: -25°C to +70°C
Applications
-
Factory Automation Equipment
-
Assembly Line Position Sensing
-
Packaging Machinery
-
Industrial Robotics
-
Conveyor and Sorting Systems
Why Choose NJ5-18GM50-E2?
-
Compact and rugged M18 design
-
High switching frequency for fast-moving targets
-
Reliable detection in tough industrial environments
Order Now
Ships globally.
