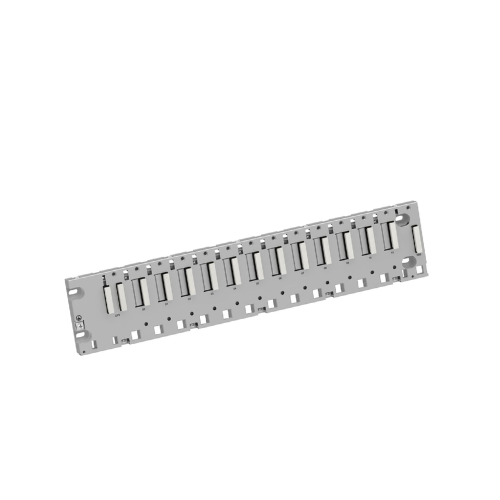

Schneider Electric BMXXBP1200

SKU: BMXXBP1200
Your Price:
$390.00
Add to wishlist
Checkout Secure
Order in the next to get it by

10+ Available in Stock

  • Image of Free Shipping on All Orders

    Free Shipping on All Orders
  • Image of 1 Year Warranty

    We will beat any price

    1 Year Warranty
  • Image of Experts Aavaiable 7/24/365

    Free shipping

    Experts Aavaiable 7/24/365
  • Image of 30 days money-back

    30 days money-back

Schneider Electric BMXXBP1200

Overview

The Schneider Electric BMXXBP1200 is a 12-slot backplane designed for the Modicon X80 system architecture. It serves as the mounting and interconnection base for M340 and M580 PACs, supporting CPU, power supply, communication, and I/O modules. With a compact and robust design, the BMXXBP1200 enables reliable and scalable industrial automation.


Key Features

  • Number of Slots: 12

  • Mounting Method: Panel mounting via M4, M5, or M6 screws

  • Backplane Type: X80 series bus for M340/M580 systems

  • Enclosure Rating: IP20

  • Integrated EMC Filter: For improved electrical noise immunity

  • Expansion Ready: Reserved XBE port for future extension

  • Orientation: Horizontal mounting recommended


Technical Specifications

  • Catalog Number: BMXXBP1200

  • Power Consumption: Approx. 0.74 to 0.83 W

  • Dimensions (W x H x D): 503.2 mm x 103.7 mm x 19 mm

  • Weight: Approx. 0.3 kg

  • Operating Temperature: 0°C to 60°C

  • Storage Temperature: –40°C to +85°C

  • Relative Humidity: 10% to 95% (non-condensing)

  • Vibration Resistance: 3 gn

  • Shock Resistance: 30 gn

  • Protection Rating: IP20 (when installed in control cabinet)

  • Certifications: CE, UL, CSA, RoHS, IEC 61131-2, IEC 61010-2-201


Applications

  • Base structure for Modicon M340 or M580 control systems

  • Industrial control panels requiring high-density modular configuration

  • OEM machine control environments

  • SCADA and process automation requiring scalable backplane capacity

  • Distributed I/O configurations using Modicon X80 modules


Why Choose the BMXXBP1200

  • High Slot Capacity: Supports up to 12 modules in a single row

  • Space Efficient: Slim-profile for compact cabinet designs

  • Robust Industrial Design: Built to handle vibration and shock

  • Seamless Integration: Designed for full compatibility with X80 modules

  • Long-Term Reliability: EMC filtering and protected construction


Order Now

The Schneider Electric BMXXBP1200 12-slot backplane is available and ships worldwide.



New & Genuine Products – Factory Sealed At PLCpartssolution, all our products are 100% new, genuine, and come in original factory-sealed packaging. We guarantee authentic components that meet the highest industry standards for performance and reliability.
1-Year Warranty Included All new products sold by PLCpartssolution come with a 1-year warranty. We stand behind the quality and reliability of our parts, ensuring coverage against manufacturing defects under normal operating conditions.
Disclaimer: PLCpartssolution is an independent supplier of surplus and refurbished industrial automation products. We are not an authorized distributor, reseller, or representative of the brands listed on this website. All trademarks, brand names, and logos are the property of their respective owners. PLCpartssolution is not affiliated with, endorsed by, or approved by ABB, Fanuc, B&R, Rockwell Automation, Schneider Electric, Siemens, or any other manufacturers mentioned.
