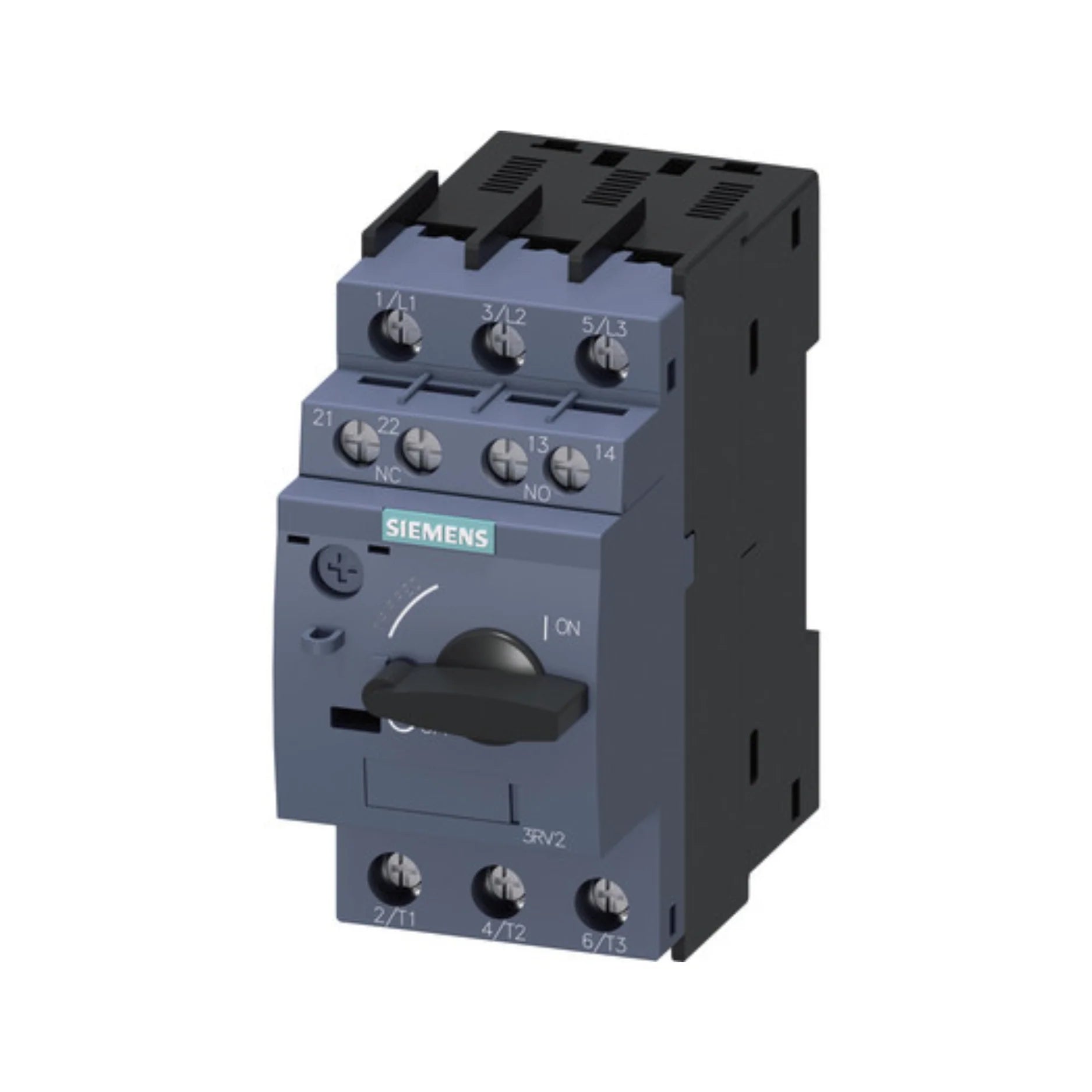

Siemens 3RV2011-4AA15 | Motor Protection Circuit Breaker for 4–6.3A AC Motors – SIRIUS S00 Frame
Overview
The Siemens 3RV2011-4AA15 is a motor protection circuit breaker from the SIRIUS 3RV2 series, designed to protect motors in the 4 to 6.3 A range against overload, short-circuit, and phase failure conditions. Compact and robust, it is built in Size S00 and supports Class 10 tripping, making it ideal for industrial motor control panels.
Key Features
-
Adjustable Current Range: 4.0–6.3 A
-
Voltage Rating: Up to 690V AC
-
Tripping Class: Class 10 (standard motor protection)
-
Frame Size: S00 (compact)
-
Poles: 3-Pole configuration
-
Connection Type: Screw terminals
-
Mounting: DIN rail or panel mount
-
Auxiliary Contact Blocks: Optional add-ons available
-
Breaking Capacity: High short-circuit interruption rating
-
Certifications: IEC, UL, CSA, CE
Technical Specifications
-
Part Number: 3RV2011-4AA15
-
Series: SIRIUS 3RV2
-
Current Range: 4–6.3 A
-
Rated Insulation Voltage (Ui): 690V
-
Utilization Category: AC-3
-
Degree of Protection: IP20 (at terminals)
-
Ambient Temperature Range: -20°C to +60°C
-
Mounting Orientation: Vertical
-
Dimensions (HxWxD): Approx. 90 × 45 × 75 mm
-
Standards Compliance: IEC 60947-4-1, EN 60947-2
Applications
-
Motor protection in industrial panels
-
Pumps, compressors, and conveyors
-
HVAC systems and fans
-
Machine tools and small machinery
-
Starter combinations and control gear
Why Choose the 3RV2011-4AA15?
-
Reliable Overload and Short-Circuit Protection
-
Adjustable Trip Range for Flexibility
-
Compact S00 Size Saves Panel Space
-
DIN Rail Mounting for Quick Installation
-
Trusted Siemens SIRIUS Quality
Order Now
The Siemens 3RV2011-4AA15 is available for international delivery.
