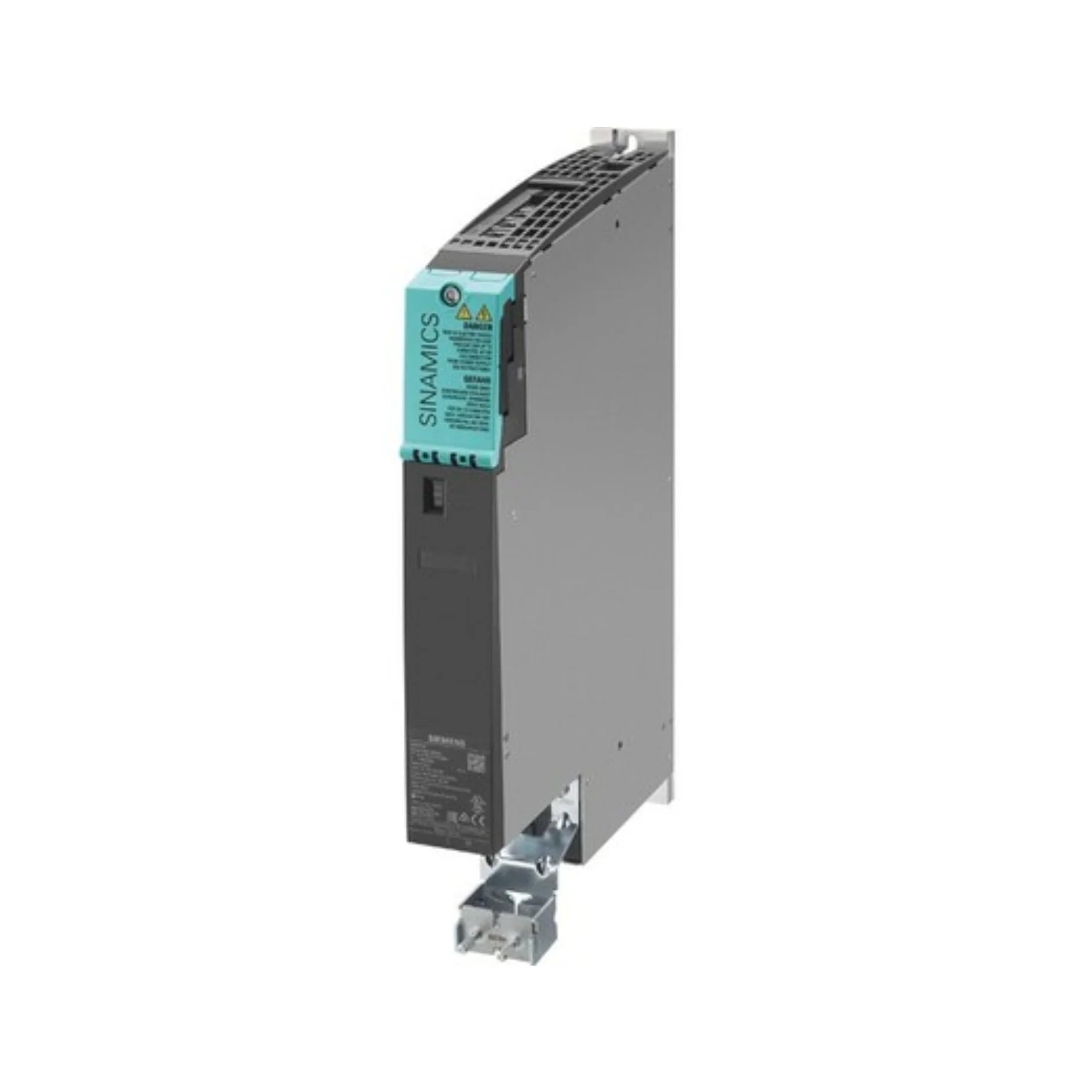

Siemens 6SL3120-1TE21-8AD0 | SINAMICS S120 Motor Module – 18A, 600V DC, Booksize, IP20
Overview
The Siemens 6SL3120-1TE21-8AD0 is a SINAMICS S120 single-axis motor module designed for high-performance applications in industrial automation. It delivers 18A rated current at 600V DC and supports seamless integration into multi-axis drive systems via DRIVE-CLiQ communication. Its booksize design and air cooling make it ideal for compact control cabinets.
Key Features
-
Output Current: 18A
-
DC Link Voltage: 600V DC
-
Cooling Method: Internal air-cooled
-
Design: Compact booksize format
-
Communication: DRIVE-CLiQ interface
-
Mounting: Vertical, DIN rail or panel-mounted
-
Protection Rating: IP20
-
Single-Axis Control: Supports induction and synchronous motors
Technical Specifications
-
Part Number: 6SL3120-1TE21-8AD0
-
Series: SINAMICS S120
-
Rated Output Frequency: 0–650 Hz
-
Max Overload: 150% for 60 sec, 200% for 3 sec
-
Operating Temp Range: 0°C to +40°C (derating to +50°C)
-
Dimensions (HxWxD): Approx. 380 × 50 × 320 mm
-
Certifications: CE, UL, RoHS
-
Motor Types Supported: Induction and permanent magnet synchronous motors
Applications
-
CNC and multi-axis machine tools
-
Packaging and material handling systems
-
Printing and converting machines
-
Robotics and servo-controlled machinery
-
OEM equipment using SINAMICS S120 platform
Why Choose the 6SL3120-1TE21-8AD0?
-
Compact & Efficient: Slim format for space-limited panels
-
High Performance: Handles demanding motion control tasks
-
Easy Integration: Native to SINAMICS S120 multi-axis configurations
-
Reliable Cooling: Fan-based internal cooling ensures stable operation
-
Trusted Siemens Design: Proven in industrial environments worldwide
Order Now
The Siemens 6SL3120-1TE21-8AD0 motor module is available and ready for global delivery.
