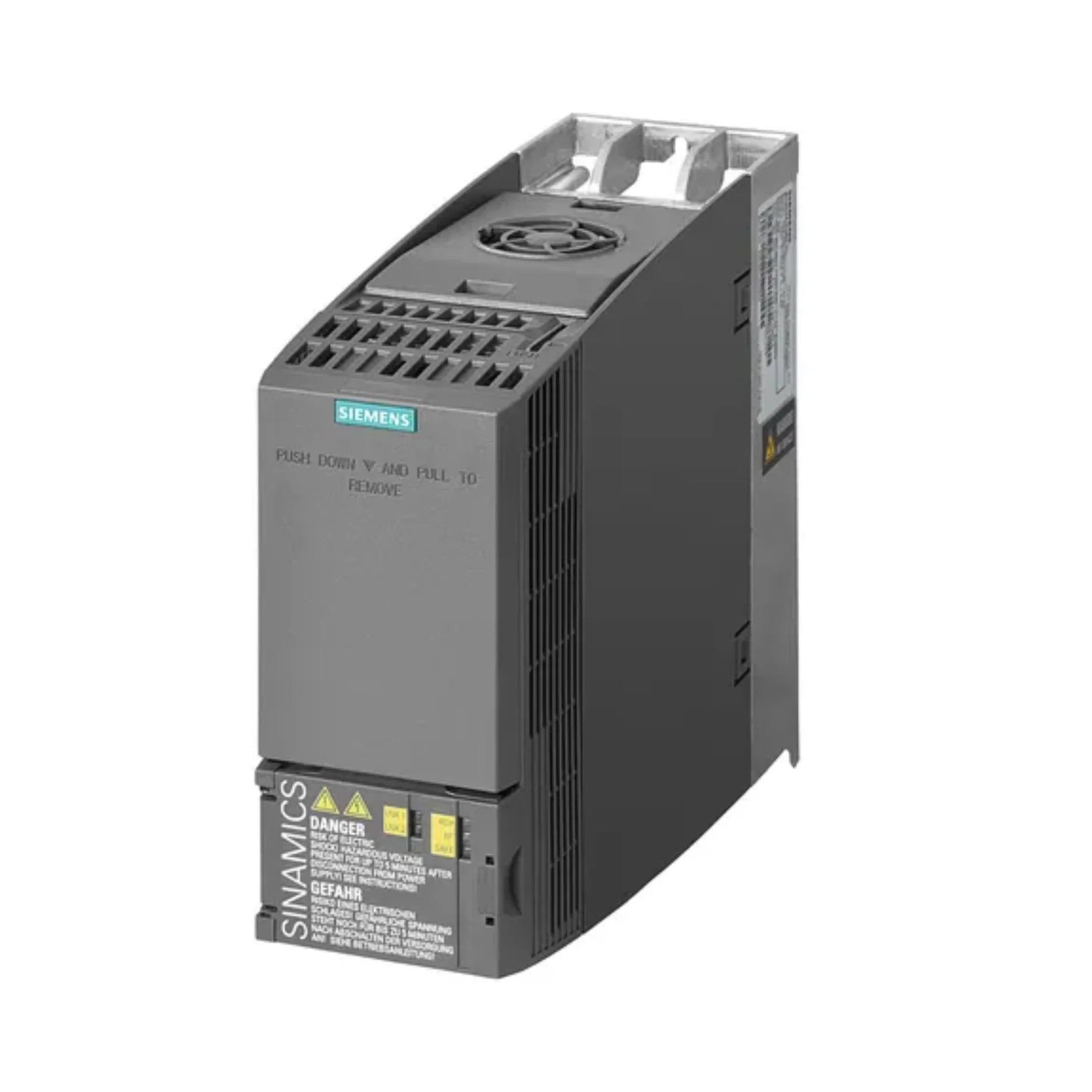

Siemens 6SL3210-1KE18-8UF1 | SINAMICS G120C 18.5kW Compact Frequency Inverter with EMC Filter
Overview
The Siemens 6SL3210-1KE18-8UF1 is a SINAMICS G120C frequency inverter designed for high-performance, energy-efficient motor control in a compact footprint. Rated for 18.5kW and 38A output current, it supports 3-phase 400V AC input, vector control, and comes with an integrated EMC filter for noise suppression. With built-in I/O and IP20 protection, this drive is ideal for industrial automation applications requiring reliable and space-saving drive technology.
Key Features
-
Rated Power: 18.5 kW (25 HP)
-
Input Voltage: 3 AC 380–480V ±10%
-
Output Current: 38A
-
Control Methods: V/f and sensorless vector control
-
EMC Filter: Integrated, Category C
-
Protection Class: IP20 (for control cabinet mounting)
-
Communication: USS/Modbus RTU standard; PROFIBUS, PROFINET, EtherNet/IP via optional modules
-
I/O:
-
6 Digital Inputs
-
2 Digital Outputs
-
2 Analog Inputs
-
1 Analog Output
-
1 Relay Output
-
-
Cooling: Internal fan cooling
-
Operator Panel: Optional (BOP-2 or IOP)
Technical Specifications
-
Part Number: 6SL3210-1KE18-8UF1
-
Series: SINAMICS G120C
-
Output Frequency: 0–650 Hz
-
Switching Frequency: Up to 16 kHz
-
Braking: DC braking, braking chopper optional
-
Ambient Temperature: -10°C to +50°C (up to +60°C with derating)
-
Mounting: Vertical, inside control cabinet
-
Dimensions (HxWxD): Approx. 300 × 140 × 200 mm
-
Certifications: CE, UL, cULus, RoHS
Applications
-
Pumps, fans, and compressors
-
Conveyor and material handling systems
-
Machine tools and production equipment
-
Industrial HVAC systems
-
General-purpose motor control
Why Choose the 6SL3210-1KE18-8UF1?
-
High Efficiency & Compact Design: Saves space and energy
-
Integrated EMC Filter: Meets industrial noise standards
-
Flexible I/O and Communication: Easily integrated into automation systems
-
Reliable Motor Control: Vector and V/f operation for dynamic performance
-
Proven Siemens Technology: Built for long-term industrial use
Order Now
The Siemens 6SL3210-1KE18-8UF1 SINAMICS G120C is in stock and available for international shipping.
