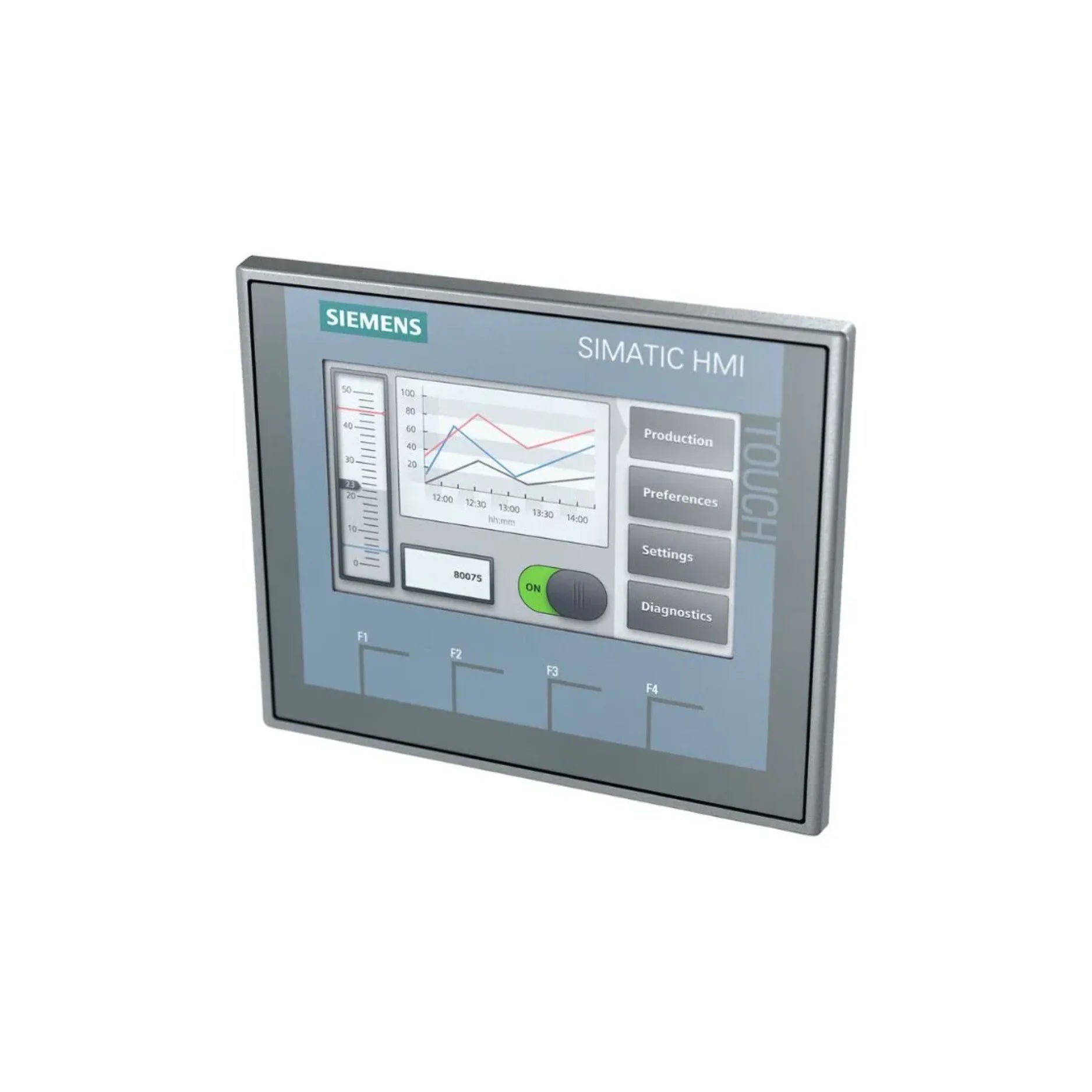

Siemens KTP400 Basic

SKU: KTP400 BASIC
Your Price:
$700.00
Add to wishlist
Checkout Secure
Order in the next to get it by

10+ Available in Stock

  • Image of Free Shipping on All Orders

    Free Shipping on All Orders
  • Image of 1 Year Warranty

    We will beat any price

    1 Year Warranty
  • Image of Experts Aavaiable 7/24/365

    Free shipping

    Experts Aavaiable 7/24/365
  • Image of 30 days money-back

    30 days money-back

Siemens KTP400 Basic | SIMATIC HMI Panel for Entry-Level Applications

Overview

The Siemens KTP400 Basic is a compact 4-inch HMI panel from the SIMATIC Basic Panel series. It features a bright TFT color display, touchscreen and 4 tactile function keys, and offers integrated PROFINET communication. Designed for simple visualization and operation tasks, it's ideal for small machines and automation setups.


Key Features

  • Display Size: 4" TFT widescreen

  • Resolution: 800 x 480 pixels

  • Input: Touchscreen + 4 function keys

  • Color Support: 65,536 colors

  • Interfaces:

    • 1 x PROFINET/Ethernet

    • 1 x USB (for configuration and data transfer)

  • Voltage Supply: 24V DC

  • Memory: 10 MB for user application

  • Mounting: Panel-mount (flush)

  • Protection:

    • Front: IP65

    • Rear: IP20

  • Configuration Software: TIA Portal / WinCC Basic V13 or higher


Technical Specifications

  • Part of Series: SIMATIC KTP Basic Panels

  • Backlight Life: Approx. 50,000 hours @ 25°C

  • Operating Temperature: 0°C to +50°C

  • Power Consumption: ~3 W

  • Dimensions (W x H x D): Approx. 144 mm x 104 mm x 47 mm

  • Panel Cutout Size: Approx. 122 mm x 92 mm

  • Weight: Approx. 0.6 kg

  • Certifications: CE, UL, cULus, RoHS


Applications

  • Compact Machine Panels

  • Packaging Systems

  • Pumps, Fans, and Compressors

  • Building Automation

  • Educational and Training Projects


Why Choose the KTP400 Basic?

  • Affordable HMI Solution: Perfect for entry-level projects

  • Touch + Keypad Control: Dual-input flexibility

  • Seamless Integration: Compatible with Siemens PLCs via PROFINET

  • Efficient Engineering: Configurable with TIA Portal

  • Robust and Compact: Industrial-grade design with IP65 front


Order Now

In stock and ready to ship globally.

New & Genuine Products – Factory Sealed At PLCpartssolution, all our products are 100% new, genuine, and come in original factory-sealed packaging. We guarantee authentic components that meet the highest industry standards for performance and reliability.
1-Year Warranty Included All new products sold by PLCpartssolution come with a 1-year warranty. We stand behind the quality and reliability of our parts, ensuring coverage against manufacturing defects under normal operating conditions.
Disclaimer: PLCpartssolution is an independent supplier of surplus and refurbished industrial automation products. We are not an authorized distributor, reseller, or representative of the brands listed on this website. All trademarks, brand names, and logos are the property of their respective owners. PLCpartssolution is not affiliated with, endorsed by, or approved by ABB, Fanuc, B&R, Rockwell Automation, Schneider Electric, Siemens, or any other manufacturers mentioned.

Description

Siemens KTP400 Basic | SIMATIC HMI Panel for Entry-Level Applications

Overview

The Siemens KTP400 Basic is a compact 4-inch HMI panel from the SIMATIC Basic Panel series. It features a bright TFT color display, touchscreen and 4 tactile function keys, and offers integrated PROFINET communication. Designed for simple visualization and operation tasks, it's ideal for small machines and automation setups.


Key Features

  • Display Size: 4" TFT widescreen

  • Resolution: 800 x 480 pixels

  • Input: Touchscreen + 4 function keys

  • Color Support: 65,536 colors

  • Interfaces:

    • 1 x PROFINET/Ethernet

    • 1 x USB (for configuration and data transfer)

  • Voltage Supply: 24V DC

  • Memory: 10 MB for user application

  • Mounting: Panel-mount (flush)

  • Protection:

    • Front: IP65

    • Rear: IP20

  • Configuration Software: TIA Portal / WinCC Basic V13 or higher


Technical Specifications

  • Part of Series: SIMATIC KTP Basic Panels

  • Backlight Life: Approx. 50,000 hours @ 25°C

  • Operating Temperature: 0°C to +50°C

  • Power Consumption: ~3 W

  • Dimensions (W x H x D): Approx. 144 mm x 104 mm x 47 mm

  • Panel Cutout Size: Approx. 122 mm x 92 mm

  • Weight: Approx. 0.6 kg

  • Certifications: CE, UL, cULus, RoHS


Applications

  • Compact Machine Panels

  • Packaging Systems

  • Pumps, Fans, and Compressors

  • Building Automation

  • Educational and Training Projects


Why Choose the KTP400 Basic?

  • Affordable HMI Solution: Perfect for entry-level projects

  • Touch + Keypad Control: Dual-input flexibility

  • Seamless Integration: Compatible with Siemens PLCs via PROFINET

  • Efficient Engineering: Configurable with TIA Portal

  • Robust and Compact: Industrial-grade design with IP65 front


Order Now

In stock and ready to ship globally.
