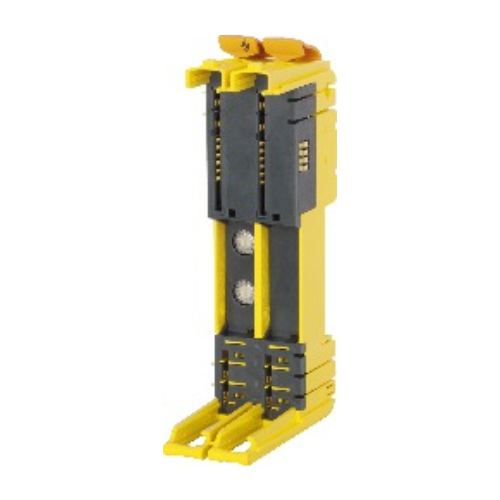

B&R X20BM36 right-side bus module, X20 Series backplane extension, DIN rail mount

B&R X20BM36

SKU: KERNAL U$ 846,00
Your Price:
$710.00
Add to wishlist
Checkout Secure
Order in the next to get it by

10+ Available in Stock

  • Image of Free Shipping on All Orders

    Free Shipping on All Orders
  • Image of 1 Year Warranty

    We will beat any price

    1 Year Warranty
  • Image of Experts Aavaiable 7/24/365

    Free shipping

    Experts Aavaiable 7/24/365
  • Image of 30 days money-back

    30 days money-back

B&R X20BM36 | Bus Module | Right-Side Connection | X20 Series | Backplane Extension

Overview

The B&R X20BM36 is a bus module for the X20 series, designed to extend the backplane bus to the right side of a system assembly. It enables the integration of additional I/O or function modules, maintaining seamless communication and power distribution across the X20 architecture.

Key Features

  • Right-side bus extension for X20 modules

  • Maintains backplane data and power continuity

  • Enables expansion of complex modular systems

  • Compact and easy to mount on DIN rail

  • Reliable mechanical and electrical connection

  • No wiring required between adjacent modules

Technical Specifications

  • Catalog Number: X20BM36

  • Function: Backplane bus extension to the right

  • Mounting: DIN rail (standard rail profile)

  • Protection Class: IP20 (when mounted)

  • Operating Temperature: 0 °C to +55 °C

  • Storage Temperature: –25 °C to +70 °C

  • Dimensions: Approx. 12.5 × 100 × 72 mm

  • Weight: ~45 g

  • Relative Humidity: 5% to 95%, non-condensing

Applications

  • Expansion of B&R X20 I/O systems

  • Modular automation in factory and process control

  • OEM machinery requiring scalable I/O architecture

  • Decentralized control panels with multiple segments

Why Choose X20BM36

  • Supports flexible I/O expansion in compact systems

  • Simple plug-in installation with no additional tools

  • Ensures secure data and power transfer in X20 networks

  • Reliable connection even in high-vibration environments

Order Now

The B&R X20BM36 bus module is available and ships worldwide.

New & Genuine Products – Factory Sealed At PLCpartssolution, all our products are 100% new, genuine, and come in original factory-sealed packaging. We guarantee authentic components that meet the highest industry standards for performance and reliability.
1-Year Warranty Included All new products sold by PLCpartssolution come with a 1-year warranty. We stand behind the quality and reliability of our parts, ensuring coverage against manufacturing defects under normal operating conditions.
Disclaimer: PLCpartssolution is an independent supplier of surplus and refurbished industrial automation products. We are not an authorized distributor, reseller, or representative of the brands listed on this website. All trademarks, brand names, and logos are the property of their respective owners. PLCpartssolution is not affiliated with, endorsed by, or approved by ABB, Fanuc, B&R, Rockwell Automation, Schneider Electric, Siemens, or any other manufacturers mentioned.
