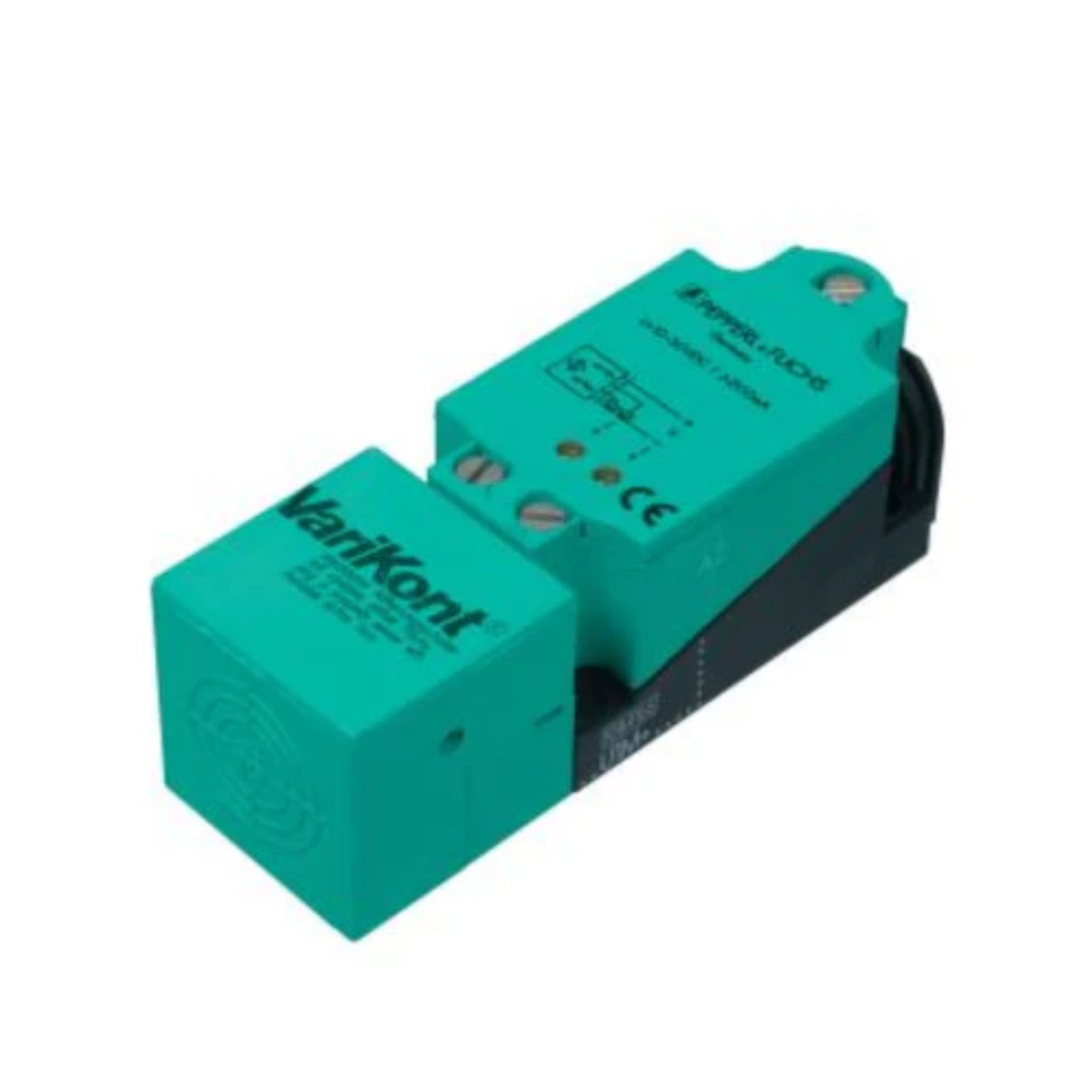

Pepperl+Fuchs CJ15‑U1‑A2

SKU: CJ15‑U1‑A2
Your Price:
$1,170.00
Add to wishlist
Checkout Secure
Order in the next to get it by

10+ Available in Stock

  • Image of Free Shipping on All Orders

    Free Shipping on All Orders
  • Image of 1 Year Warranty

    We will beat any price

    1 Year Warranty
  • Image of Experts Aavaiable 7/24/365

    Free shipping

    Experts Aavaiable 7/24/365
  • Image of 30 days money-back

    30 days money-back

Pepperl+Fuchs CJ15‑U1‑A2 | Inductive Proximity Sensor | 15 mm | Flush | PNP NO | M18 Housing | IP67

Overview

The Pepperl+Fuchs CJ15‑U1‑A2 is a flush-mounted inductive proximity sensor offering a 15 mm detection range with PNP normally open output. Housed in a resilient M18 nickel-plated brass enclosure and sealed to IP67 standards, it’s engineered for reliable metal detection in industrial automation, panel feedback, and tight-space mounting scenarios.


Key Features

  • Sensing Distance: 15 mm flush

  • Output Type: PNP normally open (NO)

  • Supply Voltage: 10–30 V DC

  • Connection: M12 4-pin connector or cable

  • Protection: IP67 dust- and water-resistant

  • Indicator: Yellow LED for switching status

  • Switching Frequency: Up to ~200 Hz

  • Safety: Short-circuit and reverse-polarity protected

  • Housing: Rugged M18 nickel-plated brass


Technical Specifications

Specification Details
Part Number CJ15‑U1‑A2
Manufacturer Pepperl+Fuchs
Sensing Range 15 mm (flush)
Output Configuration PNP normally open (NO)
Supply Voltage 10–30 V DC
Load Current ≤ 200 mA
Voltage Drop ≤ 2 V
Switching Frequency ≤ 200 Hz
Connection M12 connector or factory cable
Housing Material Nickel-plated brass
Thread Size M18 × 1
Protection Rating IP67
Operating Temperature –25 °C to +70 °C
Certifications CE, cULus

Applications

  • Metal detection in automated machinery

  • Conveyor positioning and feedback

  • Panel and control cabinet monitoring

  • OEM installations and robotics

  • Industrial environments with dust and moisture


Why Choose the CJ15‑U1‑A2

  • Compact flush design saves installation space

  • Reliable PNP NO output integrates easily with PLCs

  • Durable metal housing resists harsh industrial conditions

  • IP67 rating ensures dependable performance

  • LED indicator simplifies setup and troubleshooting

  • Built-in protections enhance longevity and safety


Order Now

The Pepperl+Fuchs CJ15‑U1‑A2 inductive proximity sensor is in stock and ships worldwide.
