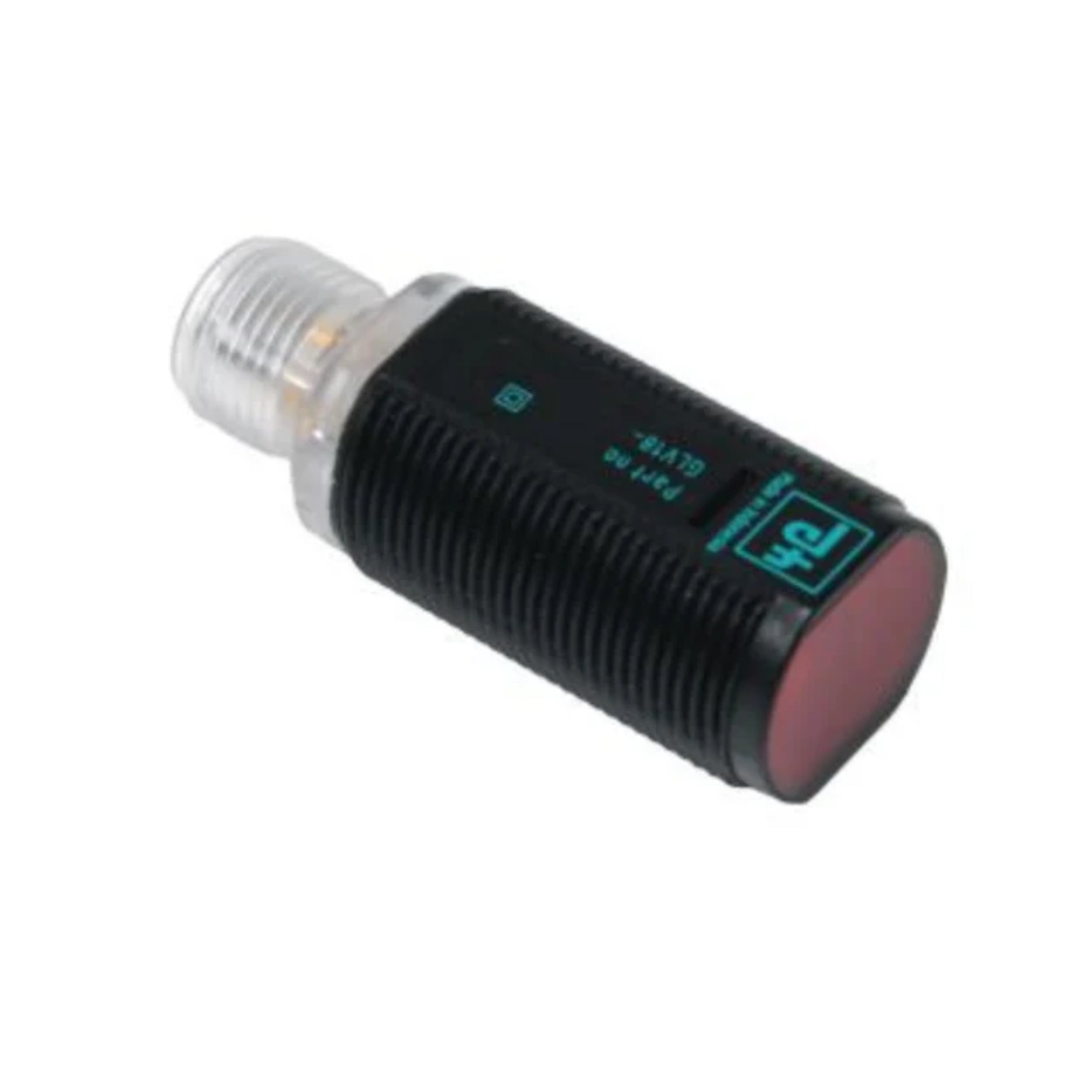

Pepperl+Fuchs GLV18-55/73/120 | Photoelectric Sensor | Diffuse Mode | 100 mm Range | PNP NO | M18 | IP67

Overview

The Pepperl+Fuchs GLV18-55/73/120 is a compact photoelectric sensor in diffuse mode with a sensing range of up to 100 mm. Designed with a visible red light emitter and housed in a standard M18 cylindrical body, this sensor offers precise object detection in tight spaces. The PNP normally open output and IP67 rating make it ideal for a wide range of industrial automation applications.


Key Features

  • Diffuse mode operation with 100 mm sensing range

  • PNP normally open (NO) output

  • Red LED for visible and easy alignment

  • M18 plastic threaded housing

  • M12 4-pin connector for quick installation

  • Sensitivity adjustable via potentiometer

  • Power and switching state LED indicators

  • IP67 protection against dust and water

  • High switching frequency: up to 250 Hz


Technical Specifications

  • Part Number: GLV18-55/73/120

  • Manufacturer: Pepperl+Fuchs

  • Sensing Mode: Diffuse mode

  • Sensing Range: Up to 100 mm

  • Light Source: Red LED

  • Output Type: PNP, normally open (NO)

  • Supply Voltage: 10–30 V DC

  • Switching Frequency: 250 Hz

  • Connection: M12 4-pin connector

  • Housing Material: Plastic, M18 threaded

  • Ambient Temperature: –25 °C to +60 °C

  • Protection Rating: IP67

  • LED Indicators: Power (green), Output (yellow)

  • Adjustments: Sensitivity via potentiometer

  • Certifications: CE, cULus


Applications

  • Object detection on assembly lines

  • Conveyor systems

  • Position sensing in packaging machines

  • OEM machinery and robotics

  • Material detection in compact spaces


Why Choose the GLV18-55/73/120

  • Precise short-range diffuse sensing (100 mm)

  • Compact and easy to integrate with M18 form factor

  • PNP output compatible with most PLC systems

  • Fast and reliable performance in industrial environments

  • IP67 sealing ensures durability in harsh conditions


Order Now

The Pepperl+Fuchs GLV18-55/73/120 photoelectric sensor is in stock and ships worldwide.

New & Genuine Products – Factory Sealed At PLCpartssolution, all our products are 100% new, genuine, and come in original factory-sealed packaging. We guarantee authentic components that meet the highest industry standards for performance and reliability.
1-Year Warranty Included All new products sold by PLCpartssolution come with a 1-year warranty. We stand behind the quality and reliability of our parts, ensuring coverage against manufacturing defects under normal operating conditions.
