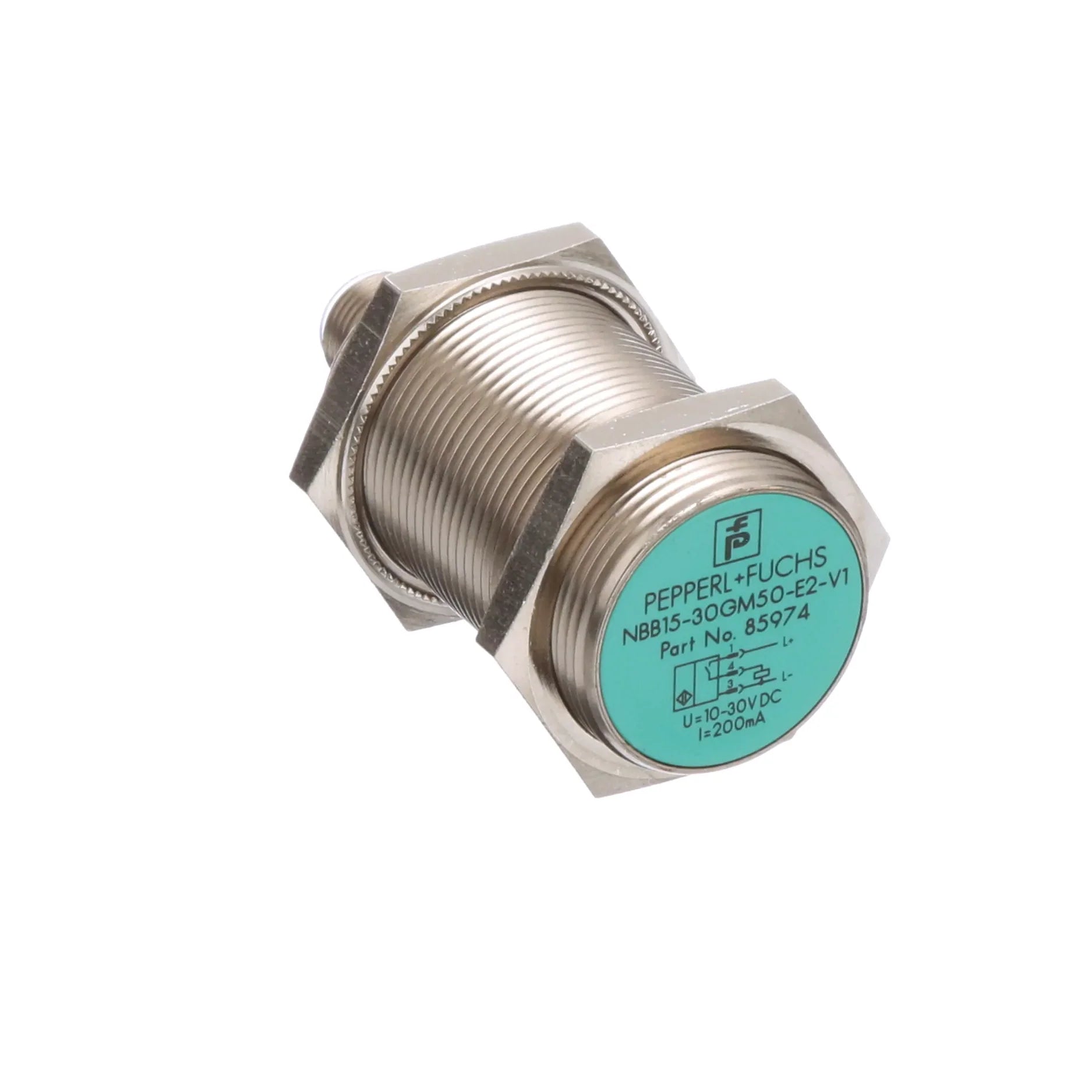

Pepperl+Fuchs NBB15‑30GM50‑E2‑V1 | Inductive Proximity Sensor | 15 mm | M30 Housing | PNP NO | DC 3‑Wire

Overview

The NBB15‑30GM50‑E2‑V1 is a high-performance inductive proximity sensor designed for non-contact detection of metallic objects. Featuring a 15 mm sensing distance in a robust M30 housing, this sensor is ideal for industrial applications demanding durability and extended range. It uses a DC 3‑wire PNP normally open output and features an M12 connector for quick installation.


Key Features

  • Sensing Distance: 15 mm (non-flush)

  • Output Type: PNP normally open (NO)

  • Housing: M30 x 1.5 cylindrical, nickel-plated brass

  • Connection: M12 connector, 4-pin

  • Electrical Configuration: DC 3-wire

  • LED status indicator

  • Short-circuit and overload protection

  • IP67-rated for harsh environments


Technical Specifications

  • Part Number: NBB15‑30GM50‑E2‑V1

  • Rated Operating Distance: 15 mm

  • Installation Type: Non-flush (unshielded)

  • Operating Voltage: 10–30 V DC

  • Switching Frequency: ≤ 150 Hz

  • Switching Current: ≤ 200 mA

  • Voltage Drop: ≤ 2 V

  • Current Consumption: ≤ 15 mA

  • Ambient Temperature: –25 °C to +70 °C

  • Housing Material: Nickel-plated brass

  • Sensing Face: Plastic

  • Connection Type: M12 x 1 connector, 4-pin

  • Protection Class: IP67


Applications

  • Heavy-duty industrial automation

  • Metal detection on conveyors and presses

  • Presence detection in material handling

  • Machine tools and robotic arms

  • Harsh environments requiring extended-range sensing


Why Choose NBB15‑30GM50‑E2‑V1

  • Long-range detection up to 15 mm

  • Rugged M30 metal housing

  • Quick-connect M12 plug for fast setup

  • High reliability in tough environments

  • Trusted Pepperl+Fuchs engineering


Order Now

The Pepperl+Fuchs NBB15‑30GM50‑E2‑V1 inductive sensor is available and ships worldwide.
