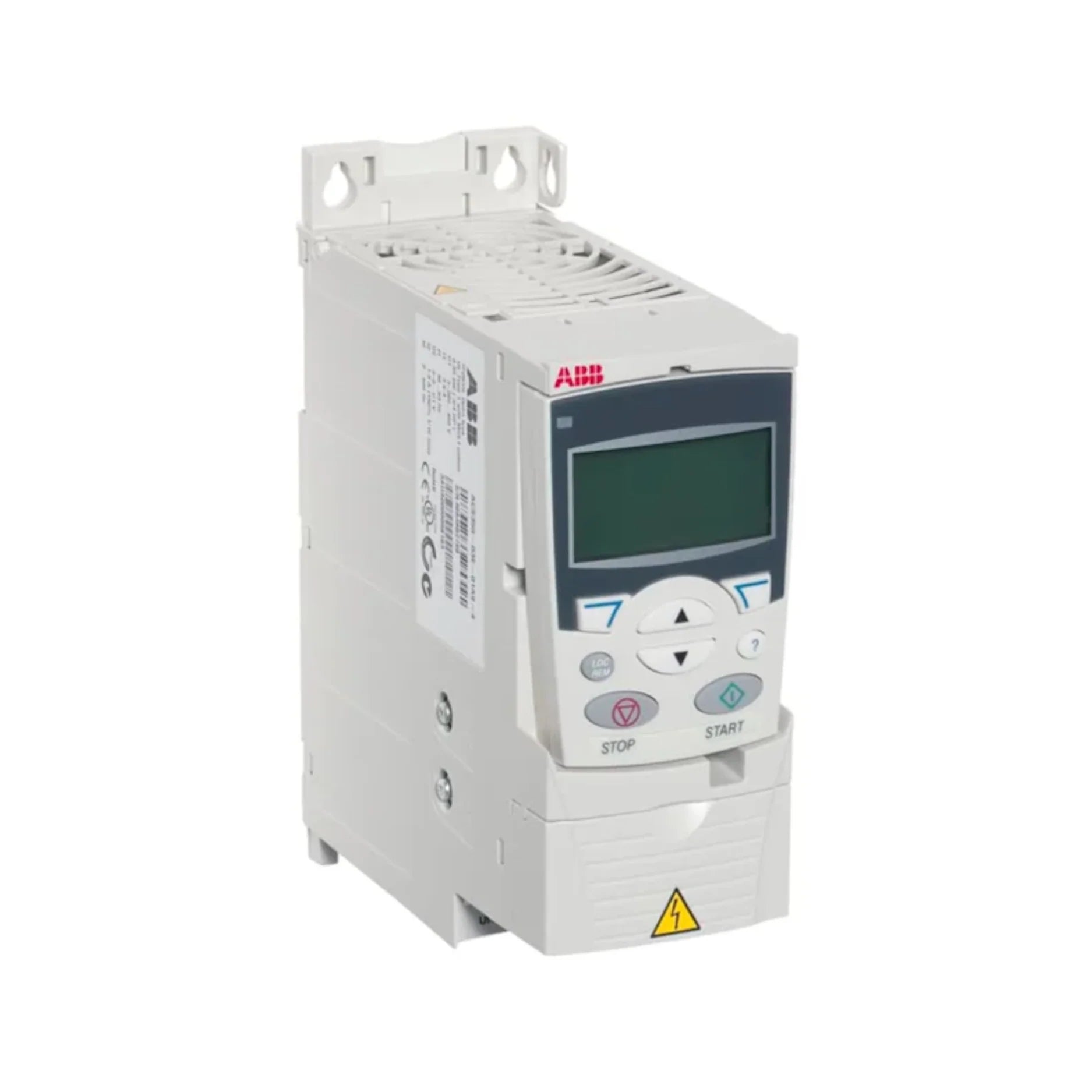

ABB ACS355-03E-01A9-4 | Compact 0.37 kW Variable Frequency Drive
Overview
The ABB ACS355-03E-01A9-4 is a versatile and compact variable frequency drive designed for industrial applications requiring precise speed and torque control. Rated at 0.37 kW and 1.9 A, it supports 400 V three-phase systems and is ideal for OEMs and machinery builders seeking easy integration and reliable performance.
Key Features
-
Power Rating: 0.37 kW (0.5 HP)
-
Rated Current: 1.9 A
-
Input Voltage: 3-phase, 380–480 V AC
-
Frequency: 50/60 Hz
-
Control Panel: Integrated keypad for quick setup
-
Vector Control: Sensorless and scalar control modes
-
Integrated Safety: Safe Torque Off (STO) as standard
-
IP Rating: IP20 (standard enclosure)
-
Fieldbus Options: Modbus RTU built-in, optional modules available
-
Compact Size: Space-saving installation
Technical Specifications
-
Model: ACS355-03E-01A9-4
-
Motor Control Type: V/Hz and sensorless vector
-
Voltage Range: 380–480 V AC
-
Phase: Three-phase
-
Output Frequency: 0–500 Hz
-
Ambient Temperature: -10°C to +50°C (without derating)
-
Protection Class: IP20
-
Certifications: CE, UL, cUL, RoHS
-
Dimensions (HxWxD): Approx. 195 x 70 x 155 mm
-
Weight: Approx. 1.4 kg
Applications
-
Packaging machinery
-
Conveyors
-
Pumps and fans
-
Food and beverage equipment
-
Textile machines
Why Choose the ABB ACS355-03E-01A9-4?
-
High Performance: Accurate and efficient motor control
-
User-Friendly: Fast installation and intuitive operation
-
Flexible Communication: Optional fieldbus adapters for easy integration
-
Energy Efficient: Optimized motor performance reduces energy use
-
Proven ABB Quality: Trusted globally in automation and drive solutions
Order Now
Worldwide delivery available.
