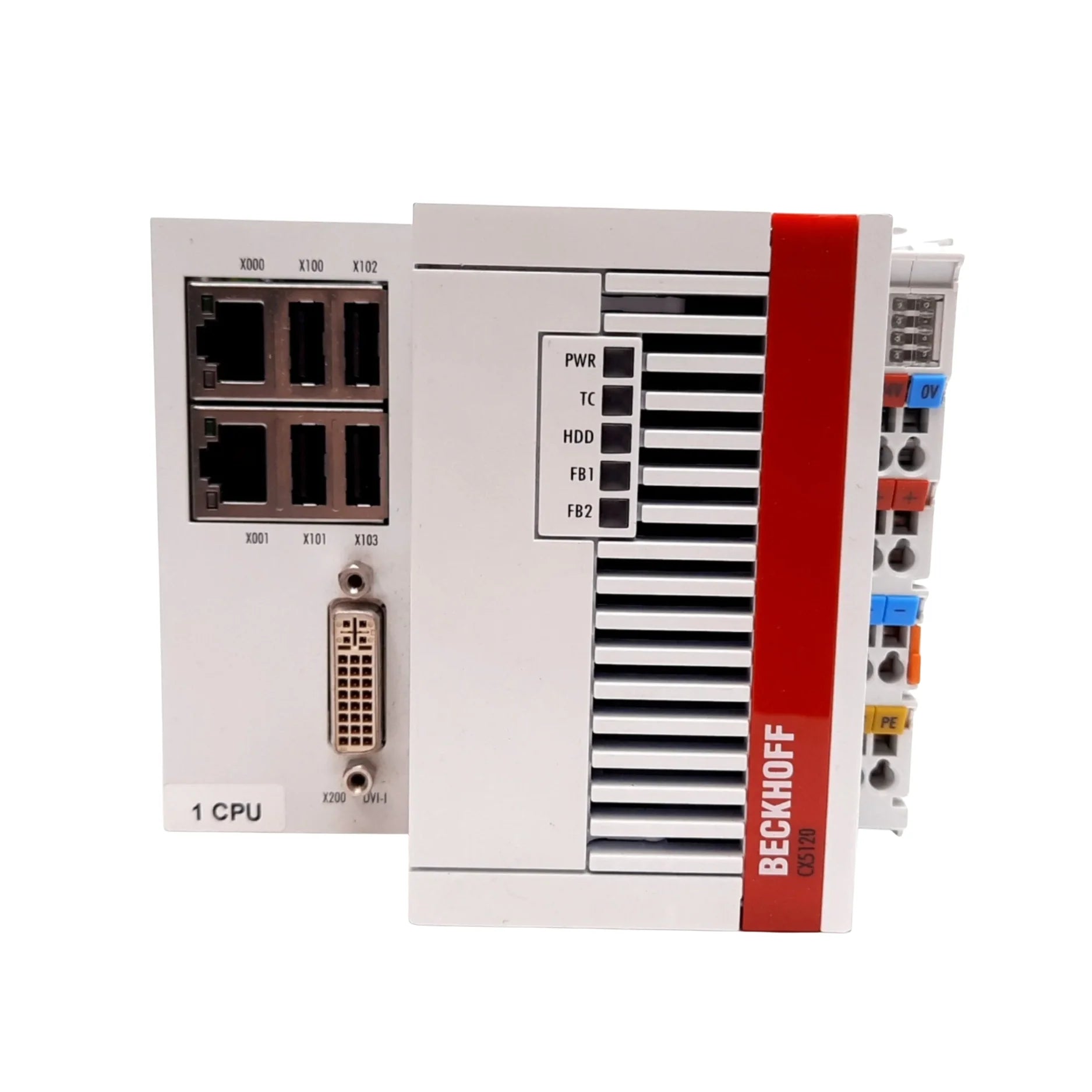

Beckhoff CX5120 – Overview
The Beckhoff CX5120 is a compact and efficient embedded PC designed for industrial automation, machine control, and visualization tasks.
It features an Intel Atom E3826 dual-core processor running at 1.46 GHz and 2 GB DDR3 RAM, offering reliable performance for medium-sized automation applications.
The CX5120 includes dual Gigabit Ethernet ports, four USB 2.0 interfaces, and a DVI-I port for HMI connection, all within a fanless and DIN-rail mountable housing.
Key Features
-
Intel Atom E3826 dual-core processor, 1.46 GHz
-
2 GB DDR3 RAM (non-expandable)
-
CFast and microSD slots for storage expansion
-
2 × Gigabit Ethernet ports for line or star topologies
-
4 × USB 2.0 ports and 1 × DVI-I video output
-
Compact and fanless design for industrial environments
-
24 V DC power supply (–15 % / +20 %)
-
DIN-rail mounting with IP20 protection
Technical Specifications
-
Part Numbers:
– CX5120
– CX 5120 -
Processor: Intel Atom E3826, 1.46 GHz (dual-core)
-
Memory: 2 GB DDR3 RAM
-
Storage: CFast card slot and microSD slot
-
Ethernet Interfaces: 2 × Gigabit Ethernet (RJ45)
-
USB Ports: 4 × USB 2.0
-
Display Interface: 1 × DVI-I
-
Power Supply: 24 V DC (–15 % / +20 %)
-
Power Consumption: Approx. 14 W typical
-
Operating Temperature: –25 °C … +60 °C
-
Storage Temperature: –40 °C … +85 °C
-
Mounting: 35 mm DIN-rail
-
Protection Rating: IP20
-
Dimensions (W × H × D): 142 × 100 × 92 mm
-
Manufacturer: Beckhoff Automation
Weight: 0.10 – 0.23 kg (0.22 – 0.50 lb)
Packed dimensions: 12 × 7 × 6 cm (4.7 × 2.8 × 2.4 in)
Applications
-
Machine and process control
-
Industrial visualization and HMI integration
-
Real-time EtherCAT and fieldbus communication
-
Compact automation systems with embedded processing
Why Choose Beckhoff CX5120
-
Compact, fanless design ideal for industrial environments
-
Dual-core processing for efficient real-time control
-
Flexible connectivity with dual Ethernet and USB ports
-
Long-term reliability and low power consumption
Order Now
The Beckhoff CX5120 Embedded PC is available for order and ships worldwide.
