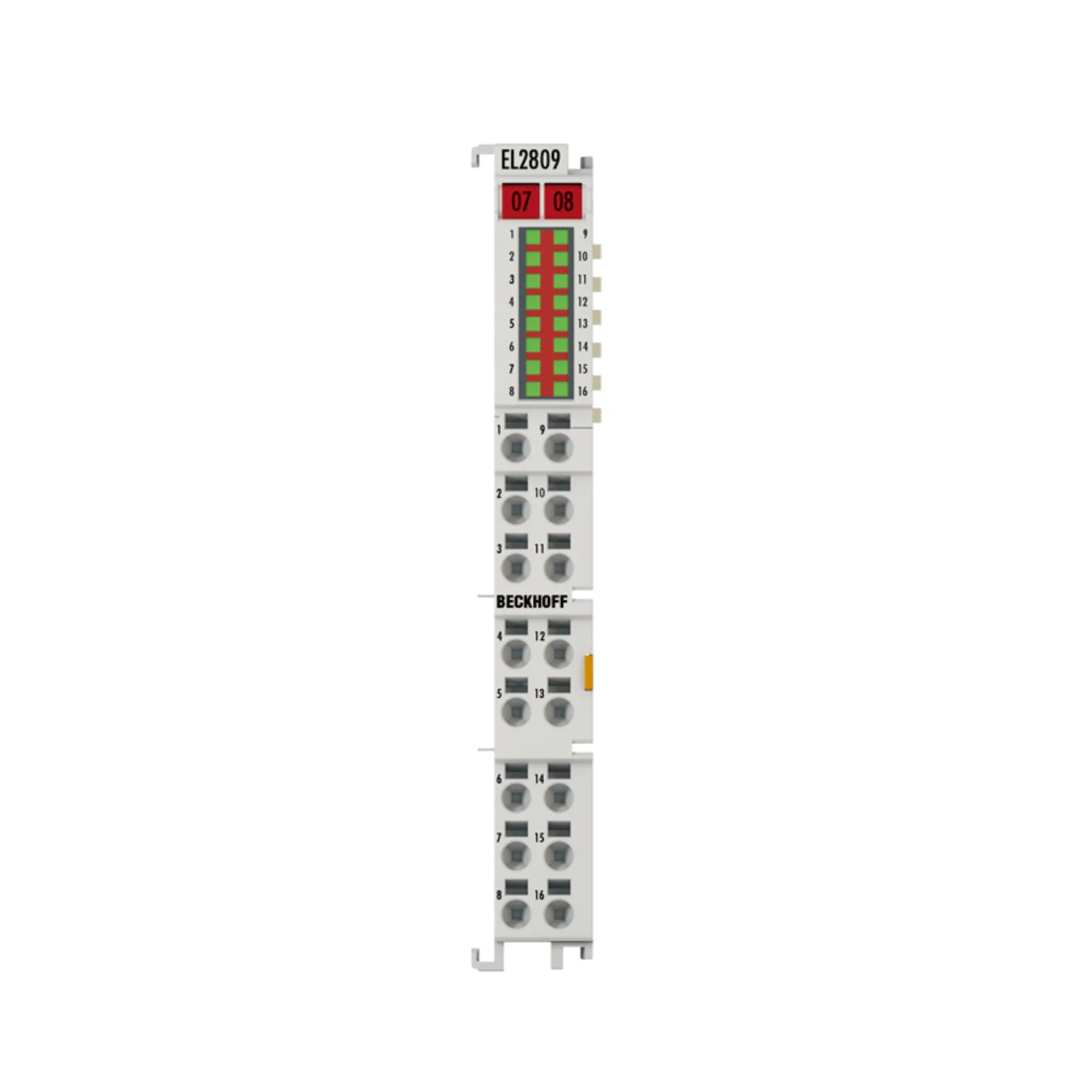

Beckhoff EL2809 – Overview
The Beckhoff EL2809 is a 16-channel digital output terminal for 24 V DC actuators. Designed for EtherCAT I/O systems, it provides fast and reliable switching of binary control signals in a slim, space-saving form factor. Each output channel is equipped with a diagnostic LED for clear status indication, making it ideal for use in modern automation cabinets and distributed I/O networks.
Key Features
-
16 digital outputs, 24 V DC
-
0.5 A load per channel
-
Integrated LEDs for status feedback on every channel
-
Compact 12 mm housing for high-density installation
-
Direct EtherCAT communication for fast response
-
Electrically isolated outputs for signal protection
-
DIN-rail mountable with plug-and-play EtherCAT connection
Technical Specifications
-
Part Number: EL2809
-
Number of Outputs: 16
-
Nominal Output Voltage: 24 V DC (-15 % / +20 %)
-
Maximum Load Current: 0.5 A per channel
-
Total Current: Max. 8 A (depending on operating conditions)
-
Output Type: Electronic switching (short-circuit proof)
-
Signal Delay: Approx. 300 µs
-
Electrical Isolation: 500 V (E-bus / signal)
-
Bus System: EtherCAT
-
Current Consumption (E-bus): Typical 100 mA
-
Protection Rating: IP20
-
Mounting: 35 mm DIN-rail
-
Operating Temperature: -25 °C … +60 °C
-
Storage Temperature: -40 °C … +85 °C
-
Manufacturer: Beckhoff Automation
-
Weight: 0.10 – 0.23 kg (0.22 – 0.50 lb)
-
Packed Dimensions: 12 × 7 × 6 cm (4.7 × 2.8 × 2.4 in)
Applications
-
Actuator control and switching tasks in industrial automation
-
Machine and process control requiring multiple outputs
-
Distributed I/O systems based on EtherCAT technology
-
Packaging, robotics, and material-handling equipment
-
Building automation and lighting control systems
Why Choose Beckhoff EL2809
-
High channel density – 16 outputs in only 12 mm width
-
Clear LED diagnostics on each channel for fast troubleshooting
-
Reliable solid-state switching for long service life
-
Fully compatible with EtherCAT I/O system
-
Space-saving, robust, and industrially proven design
